73-87 Weld On 4 Link | C20, C30

NOW INCLUDING THIS KIT WITH ADJUSTABLE ENDS

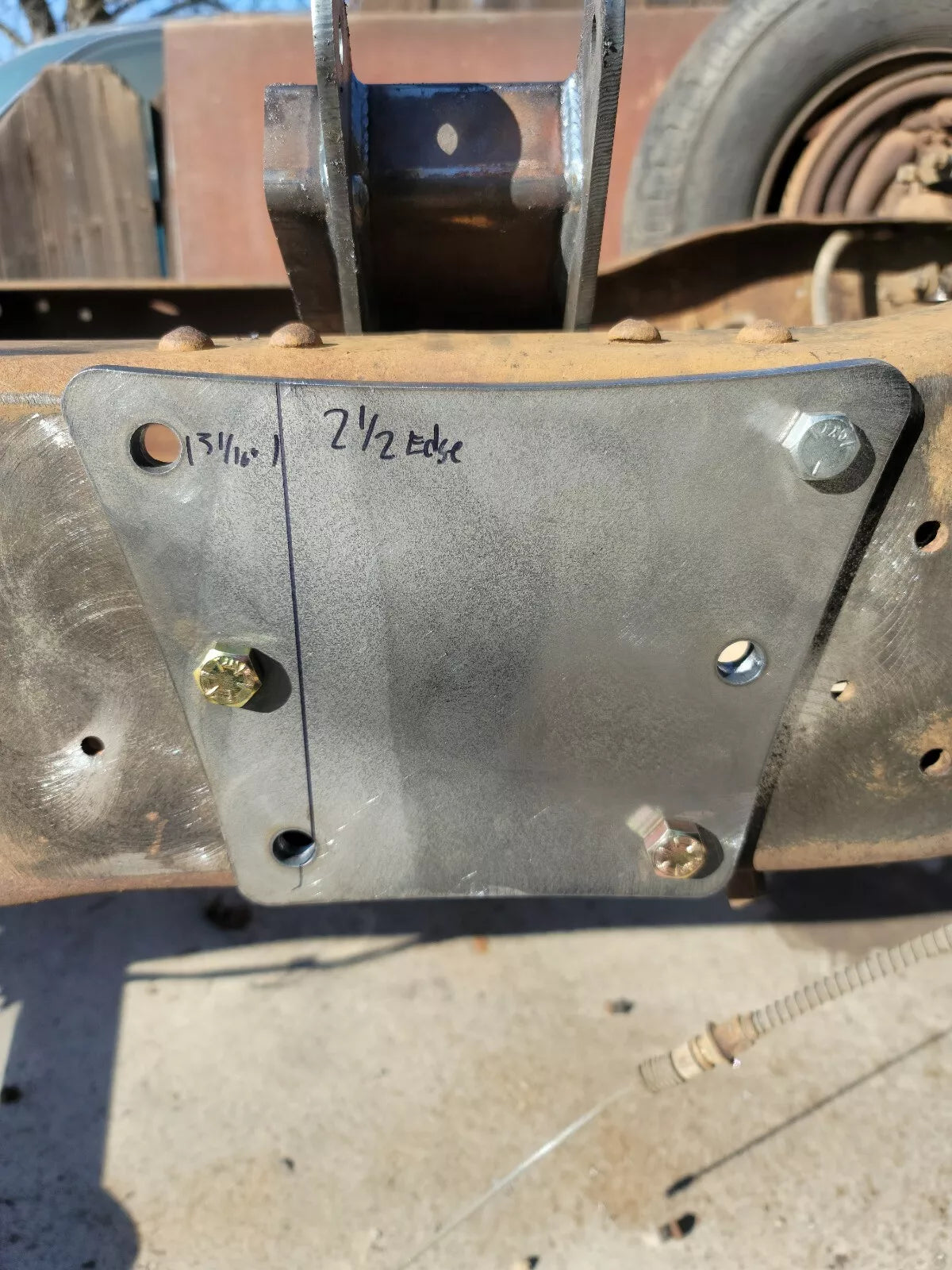

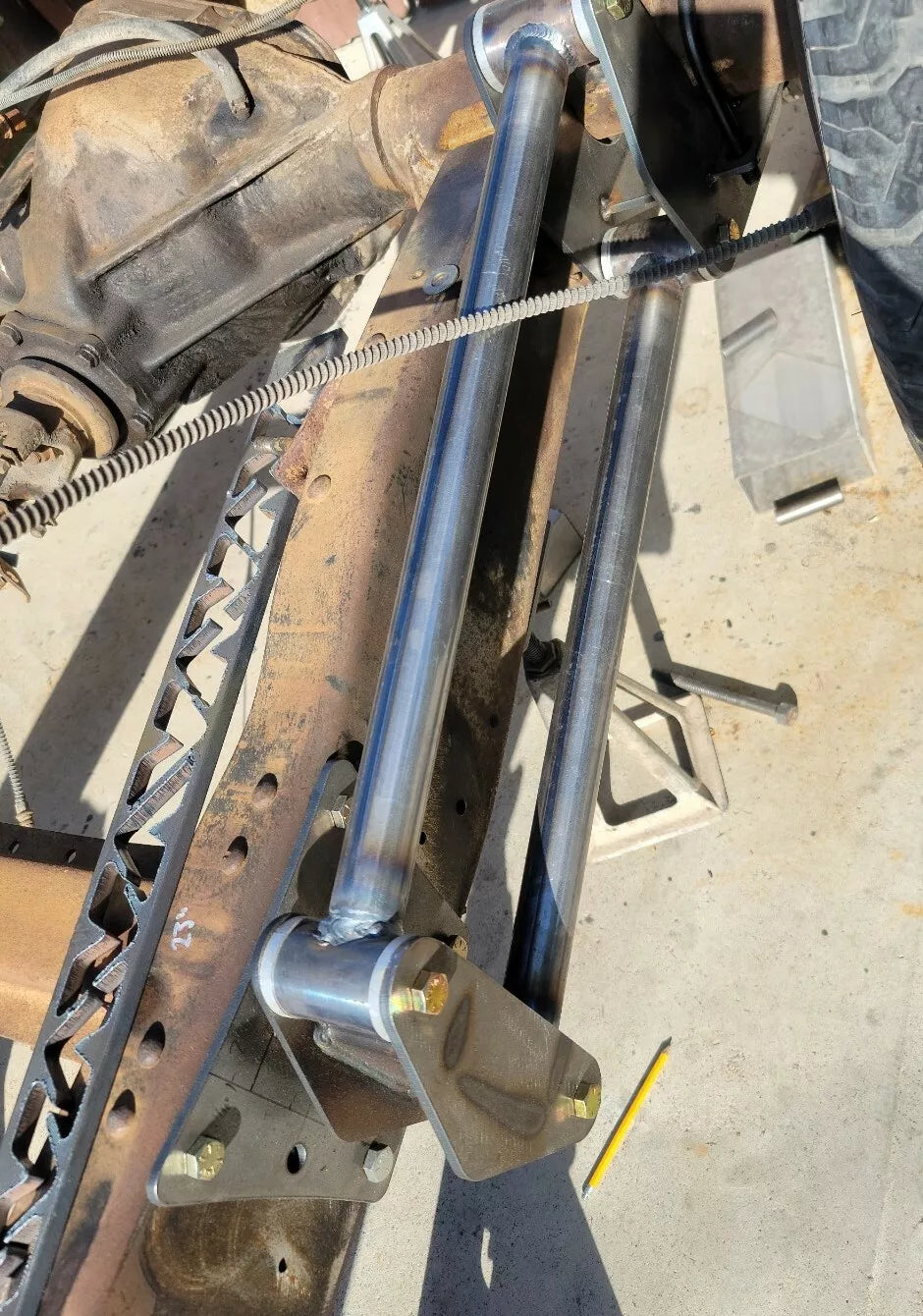

73-87 C20 C30 weld On 4 Link. All brackets are 1/4". The bars are 1.5" DOM tubing wall. The front mount is made to bolt on to front spring hanger Look at last picture and confirm your hanger has same bolt pattern otherwise it will not bolt up. Comes with axle weld on brackets, Made to use a 14 bolt axle with the 40.5" perch center.

If you are wanting to use a smaller axle, email me (thesimplec10@gmail.com or use the chat feature on the website) so i can confirm i can accommodate that. Will come with all the hardware and bare metal Lead time is 15 to 20 business  days since they are all built to order and demand.

This kit is modeled off a c20 crewcab, which will work on c30 duallys also. Made to lay frame on a 30" diameter tire and keep the axle centered in the wheel well when laid out.

If your wanting to use it on a C10, email me. I have designed the brackets to bolt up.
