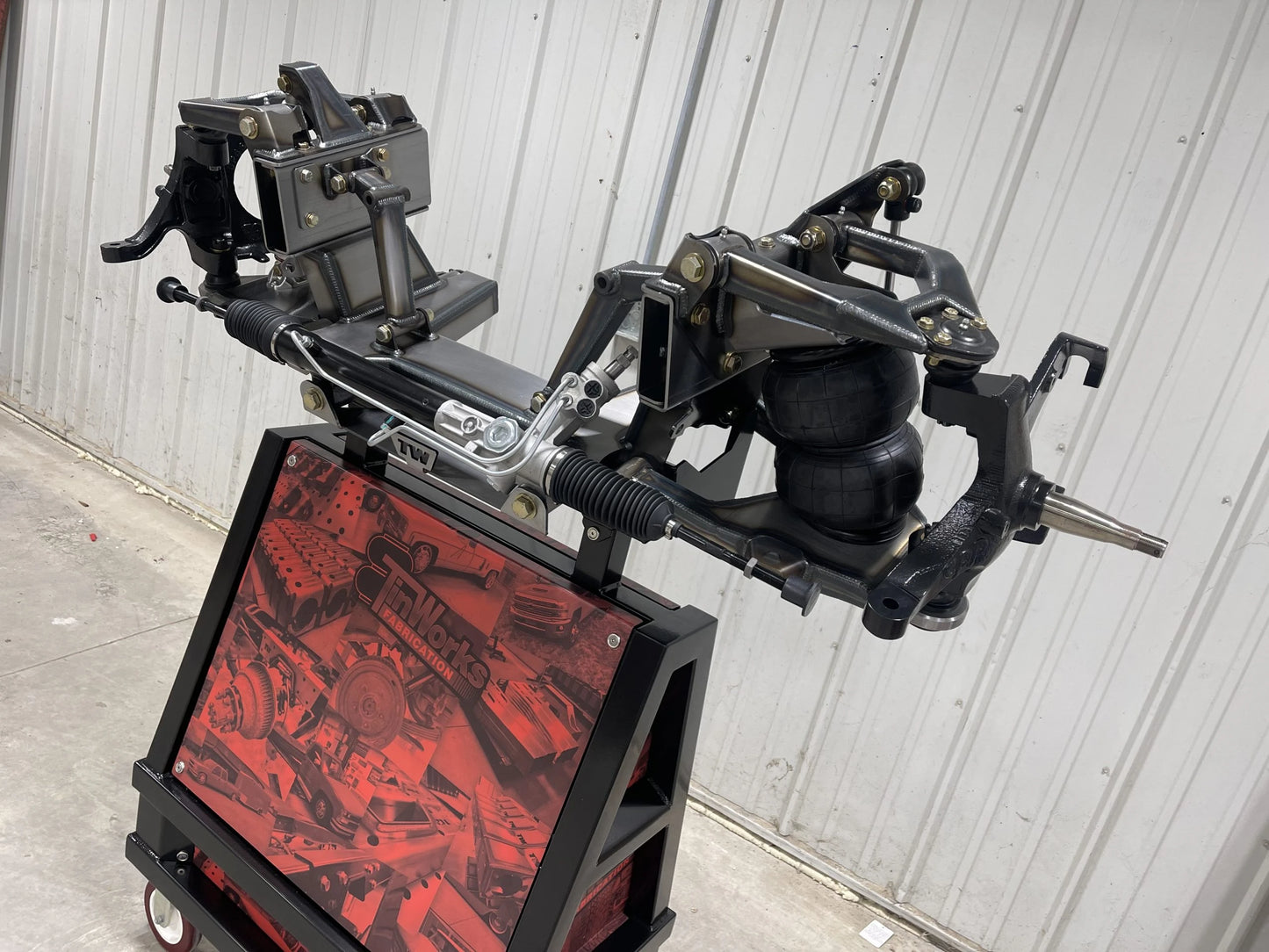

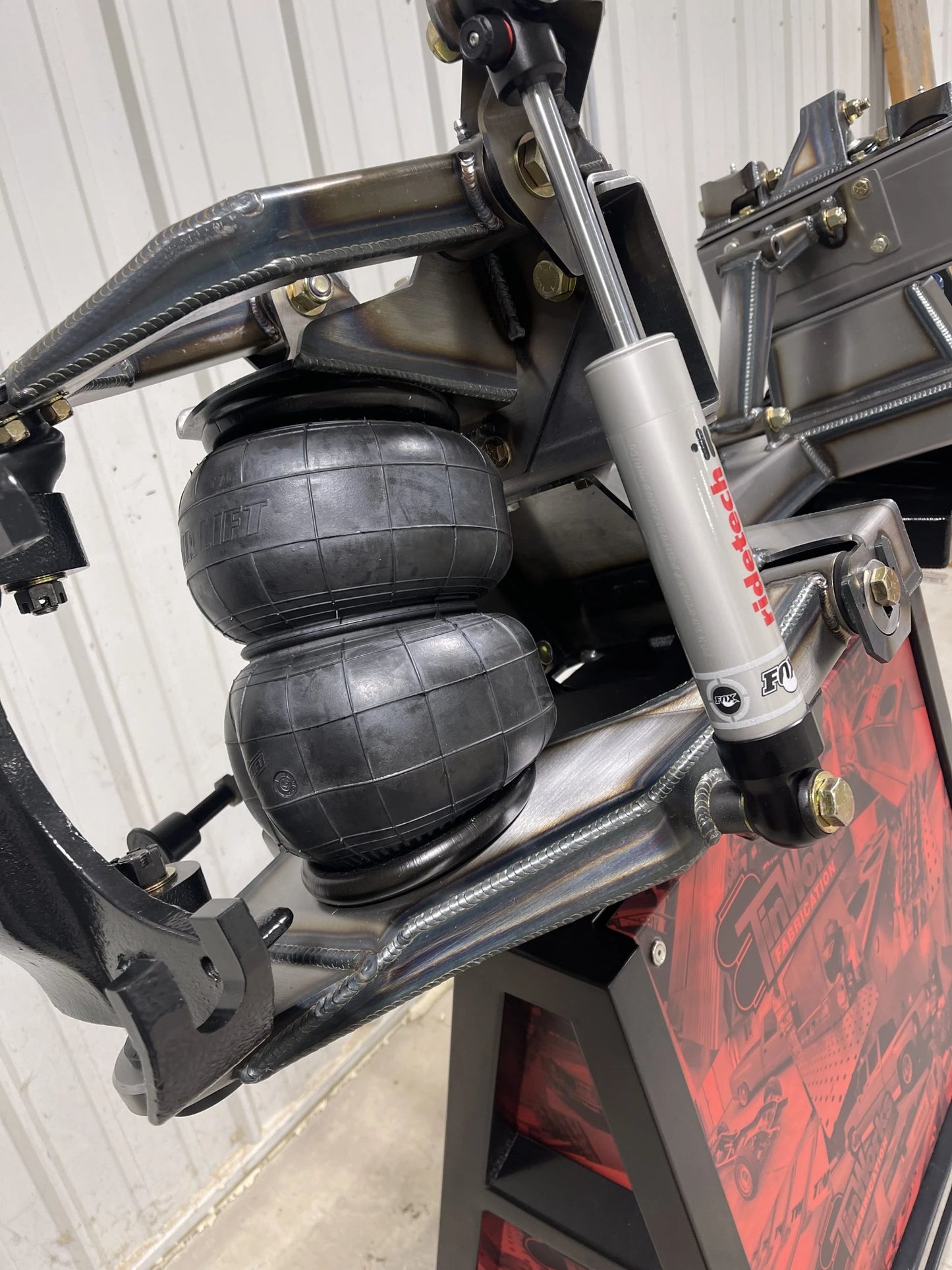

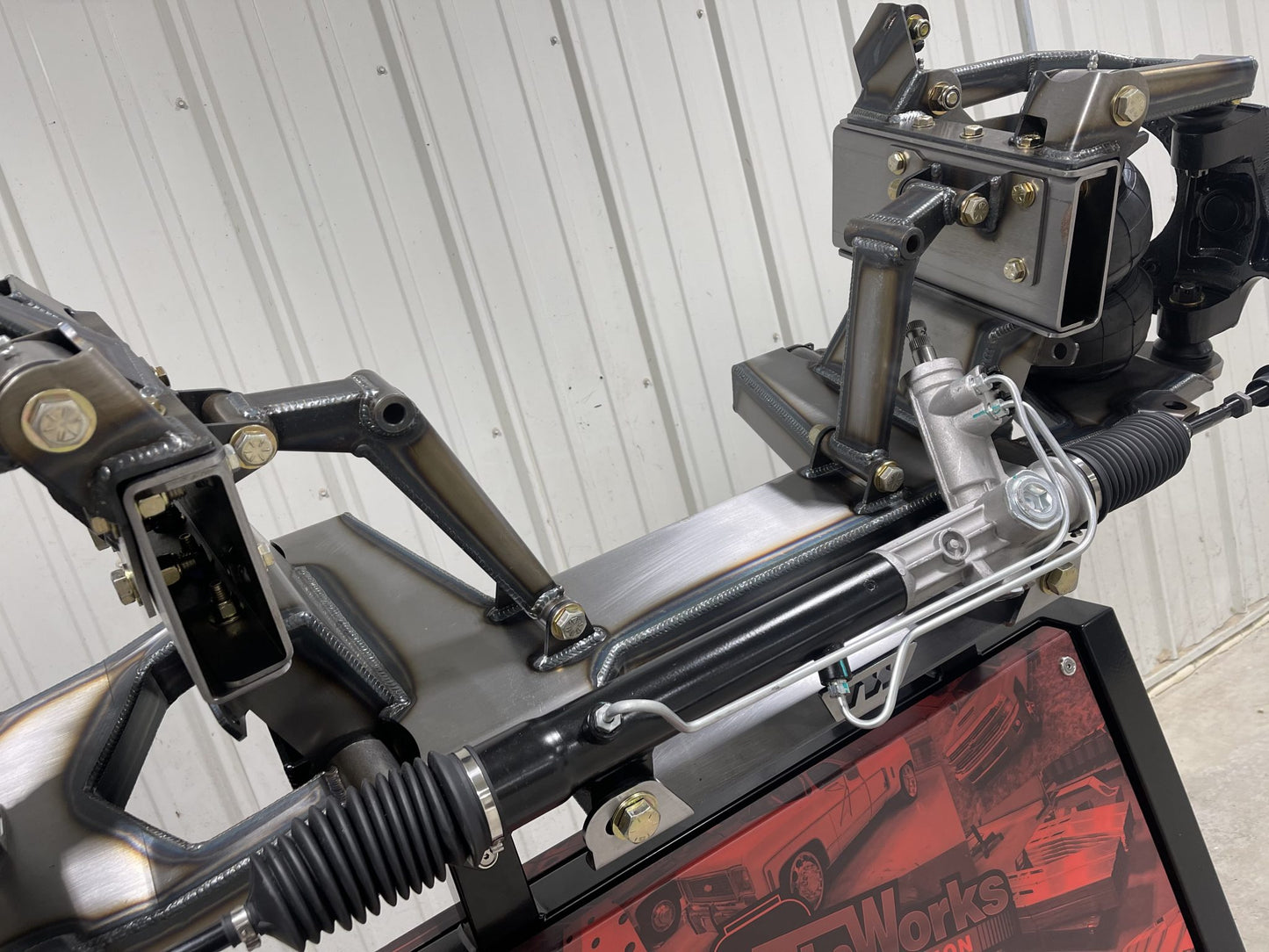

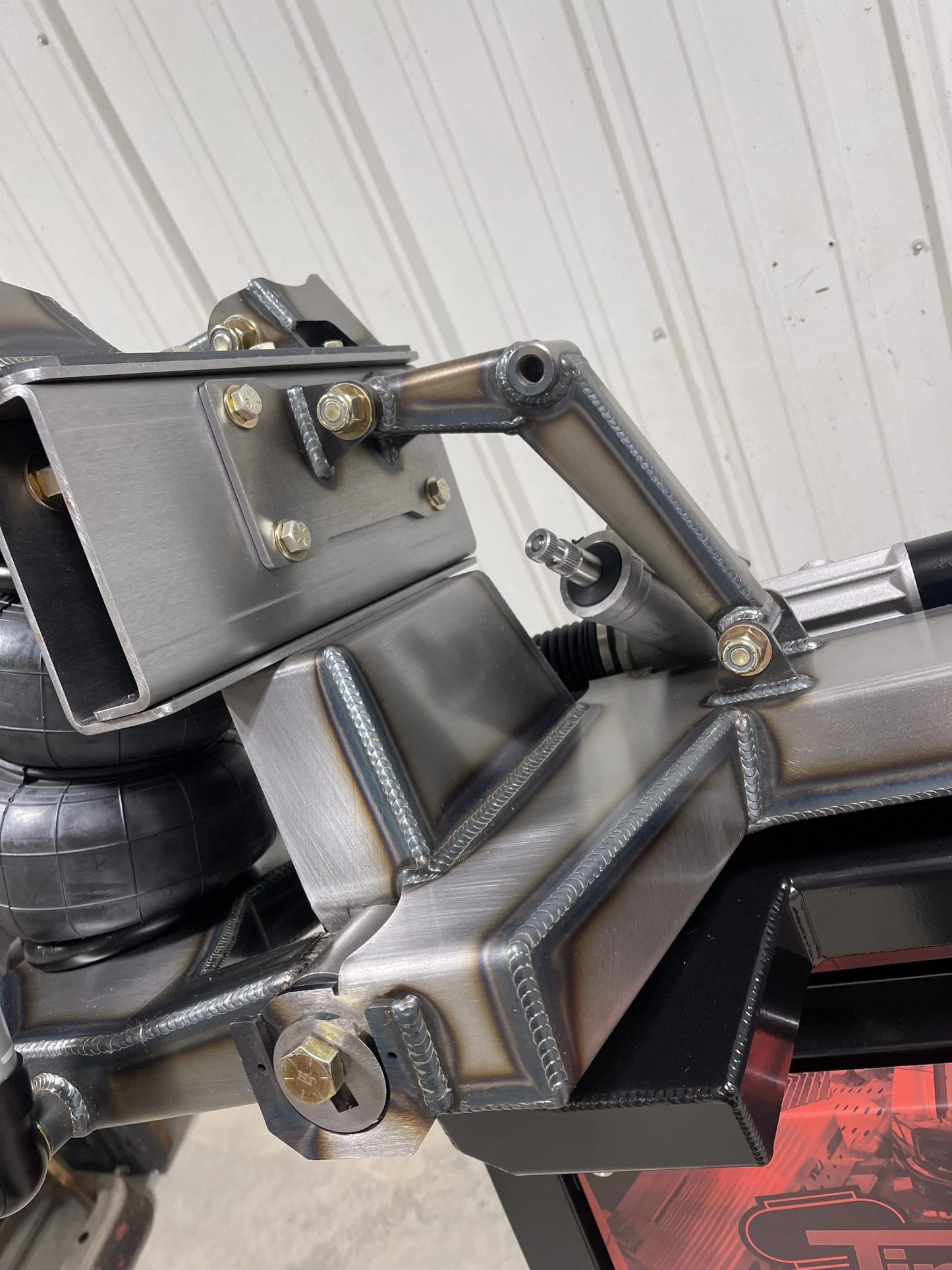

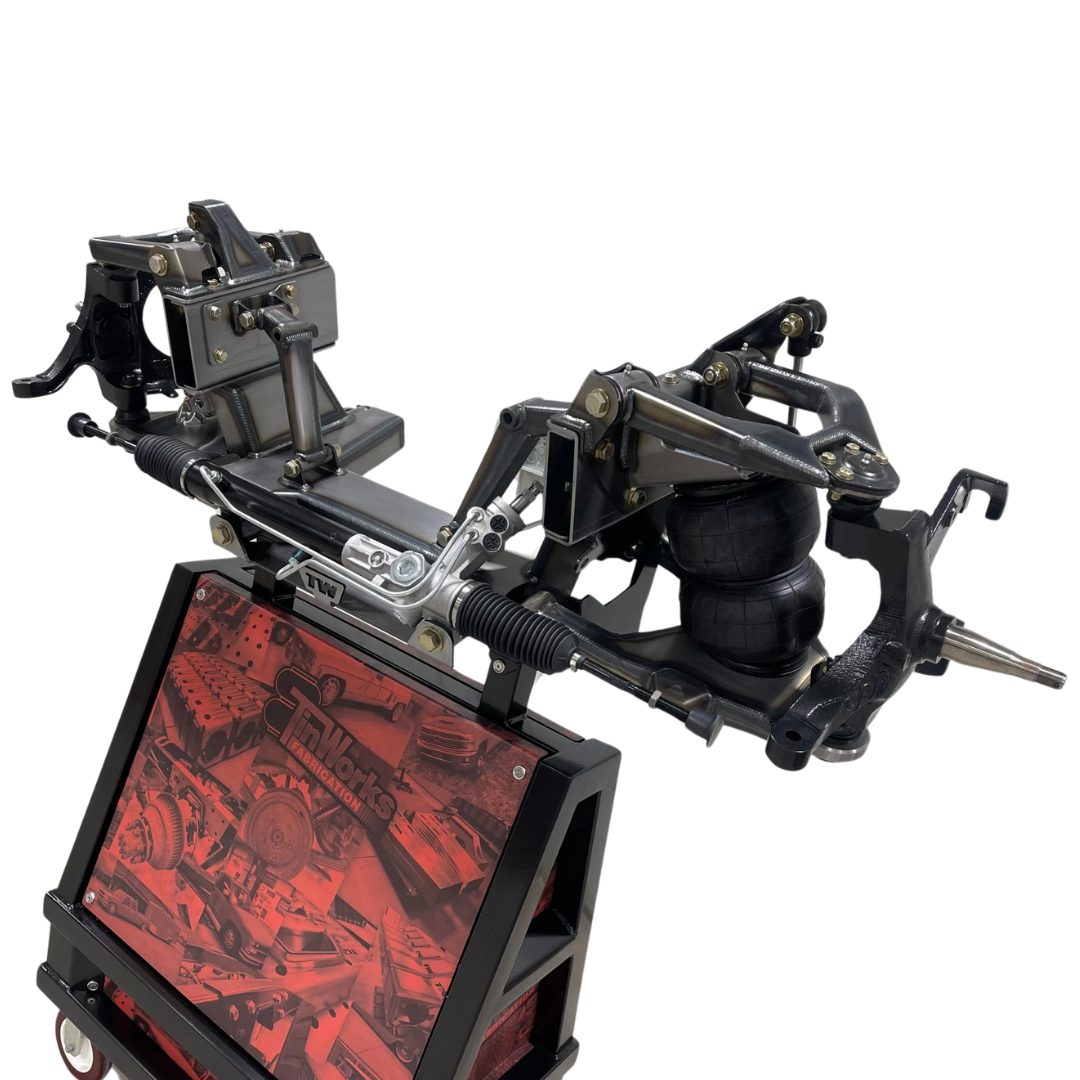

63-72 Front Air Ride Suspension

Our 100% bolt in air ride kit will completely replace your old and tired, factory front suspension. It uses modern components and geometry to improve your trucks handling and ride quality. We have moved the wheels forward 1 inch to keep your wheels centered in the fender and narrowed the track width to improve tire clearances while driving low.  It also includes rack & pinion steering which uses an added double shear mounting design which drastically reduces flex in your steering. Our ride height with drop spindles is set at 4 Inches (ground to bottom of frame rail) and will lay frame when the air is released from your bags.

Features

• 3/16 Plate Construction
• Bolt in Design
• Modern Rack & Pinion Steering
• Improved Geometry
• 4″ Ride Height

Includes

• Power Steering Rack
• 2600 Pound AirLift Bags
• Grade 8 Hardware
• 71-72 Ball Joints (Spindles not Included)
• Ridetech Shocks

Application

• 1963-1972 Chevy/GMC C10, C20 Trucks

*Current lead time on custom built front suspensions is 4-6 weeks.
