63-72 Front Dropmember, Level 2 Coilover | Porterbuilt

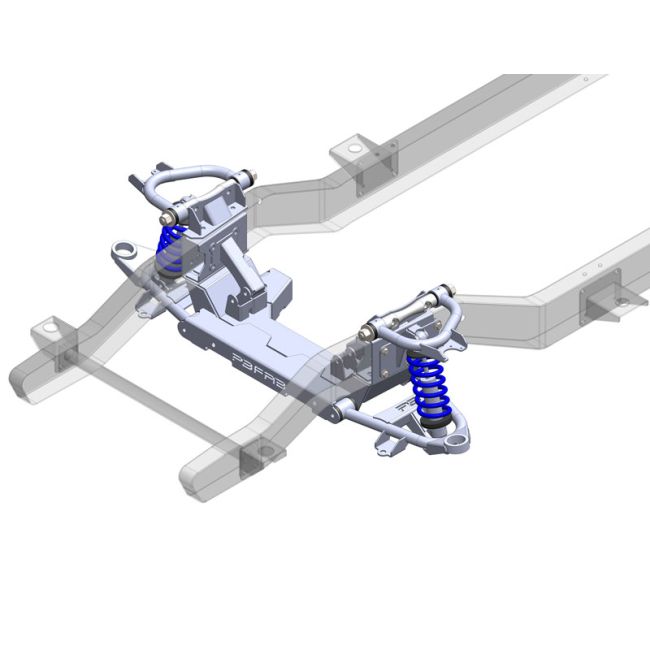

The 1963-72 Chevy Pickup Front Dropmember Coilover suspension system is designed to replace the factory cross-member and steering system. It is engineered as a modular bolt-in unit that requires no welding.
When combined with a 2.5” drop spindle, 29” tall tire, and Porterbuilt Tubular Control Arms, the Level 2 Front will set the bottom of the cab approx. 4-6" inches off the ground at ride height.

Ride Height - 4-6"

1963-72 Dropmember Level 2 Front Coilover

The Version 7, Level 2 Front Dropmember system for 1963-72 Chevy Pickups is designed to replace the factory cross-member and steering system. Engineered as a modular bolt-in unit, its advantages include:

• - Revised suspension geometry for improved performance and ride quality
• - Rack and pinion steering for increased steering response
• - Proper wheel center-line placement (sets the wheel center-line in the middle of the wheel well opening for a more balanced look)
• - Narrowed trac-width (Level 2 narrows the trac- width approx. 1.25” per side)
• - Added ground clearance over factory components

When combined with a 2.5” drop spindle, 29” tall tire, and Porterbuilt Tubular Control Arms, the Level 2 Front will set the bottom of the cab approx. 4-6" inches off the ground at ride height.

Basic Kit Includes:

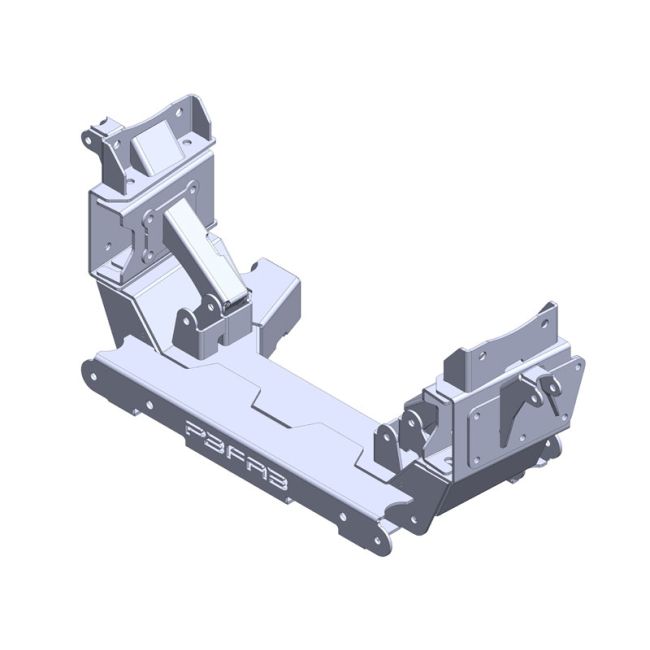

• - Main crossmember assembly (Dropmember)
• - Inner truss support system
• - Core support crossmember
• - Grade 8 hardware for installation

Does NOT come powdercoated. All parts come raw.

The Version 7 Dropmember coilover system is only compatible with Porterbuilt Tubular Control Arms.

The Version 7 Dropmember coilover system DOES require modification of the factory inner fenders.

The Version 7 Dropmember coilover system requires the Rack & Pinion Hardware kit.

Designed to be paired with our Dropmember Level 2 Rear.

Options & Upgrades

Porterbuilt Motor Mounts (required)

Porterbuilt motor mounts bolt directly to the block and include all hardware necessary for installation. Available in a variety of configurations:
Small Block Chevy, SBC
Big Block Chevy, BBC
LS GEN3
LT

Porterbuilt Tubular Control Arms (required)

Porterbuilt tubular control arms are built using thick-wall DOM tubing and CNC cut 3/16 pickeled plate steel. All bushing pivot tubes and ball joint cups are TIG welded.

NOTE: ALL CONTROL ARMS ARE DESIGNED TO USE PROFORGED BALL JOINTS. .

Rack & Pinion

Unisteer Rack & Pinion kits have everything you need to switch over to a standard ratio rack & pinion. Available in power or manual. Don't forget to add hoses and steering linkage.

Rack & Pinion Hardware (required)

The rack and pinion hardware kit connects the steering rack to the Dropmember and tie rod ends to the spindles. Includes billet rack mount bushings, high-quality rod ends, mis-alignment spacers, and custom machined tie rod adjuster sleeves.

Ridetech Coilovers

Ridetech Handling Quality (“HQ”) Coilover Series - The HQ coil-over allows the driver to tune and adjust the shock performance and/or ride quality at the turn of a knob located on the shock body. The HQ series is a rebound single adjustable shock.

Ridetech Track Quality (“TQ”) Coilover Series - The TQ coilover has a single rebound adjustment and a DUAL stage [high speed and low speed] compression adjustment. It uses a remote reservoir that is connected with a 30" braided line for easy installation in a variety of installation applications.

Sway Bar

This 1.25″ OD swaybar is manufactured by Porterbuilt, and is available for factory crossmember and Dropmember equipped trucks. It includes all mounting hardware.

Packages:

Package 1: Dropmember, Narrowed Control Arms, Ridetech HQ Coilovers

Package 2:

Dropmember, Narrowed Control Arms, Ridetech HQ Coilovers, Sway Bar, Sway Bar Hardware

Package 3:

Dropmember, Narrowed Control Arms, Ridetech HQ Coilovers, Sway Bar, Sway Bar Hardware, Rack and Pinion, Rack and Pinion Hardware, Steering Linkage

I will contact each person who orders a dropmember to confirm details after purchase to make sure you get exactly what you need. If you're not sure, please contact Travis. thesimplec10@gmail.com 615-578-4540

Lead Time is 8-10 weeks currently.
