63-72 Fuel Tank | Bed Fill Non EFI Tank
63-72 Fuel Tank | Bed Fill Non EFI Tank
Couldn't load pickup availability
WILL FIT YEARS 63-72 C10 Tank without any modifications to the frame or bed floor when mounted to the bottom.
Years 63-66 K10 & possibly Other year K10's it may be required to modify or move the rear crossmember
Build times for tanks are 1-2 weeks currently before shipped
-Tank Dimensions: 26.5 x 19 x 10
-Tank Mounting Angle = 3" each side
- Tank Material: .125 Aluminum
- CNC Machined Non Vented / Threaded Cap.
- 1/2" NPT Vent
- 3/8" NPT Return
-3/8" NPT Pickup tube in Plate*
- 3 Baffles
-Approx 19 Gallons
- This tank is a NON-EFI but we have constructed the tank so that you can upgrade to our in-tank EFI system in the future.
If you're using the 63-64 factory 0-30 ohm fuel gauge, you will need to choose "No sender" below and purchase this Classic Instruments sensor unit. If you have a 65-87 C10, choose the 0-90 Ohm sender. If you're running Dakota Digital or any other digital gauges, you can select the sender you choose.
- GM up to 1964 - 0-30 Ohms
- GM 1965-1997 - 0-90 Ohms
- GM 1998 & up - 40-250 Ohms (Sometimes 250-40 Ohms)
High-quality 1/8" welded aluminum fuel tank for 63-72 C10 trucks. Customers said the tank "looks absolutely amazing" and is "perfect" for their builds. Praised for excellent craftsmanship, proper fitment, and helpful customer service. Free shipping with secure packaging. Installation straightforward with flush mount bed fill design.

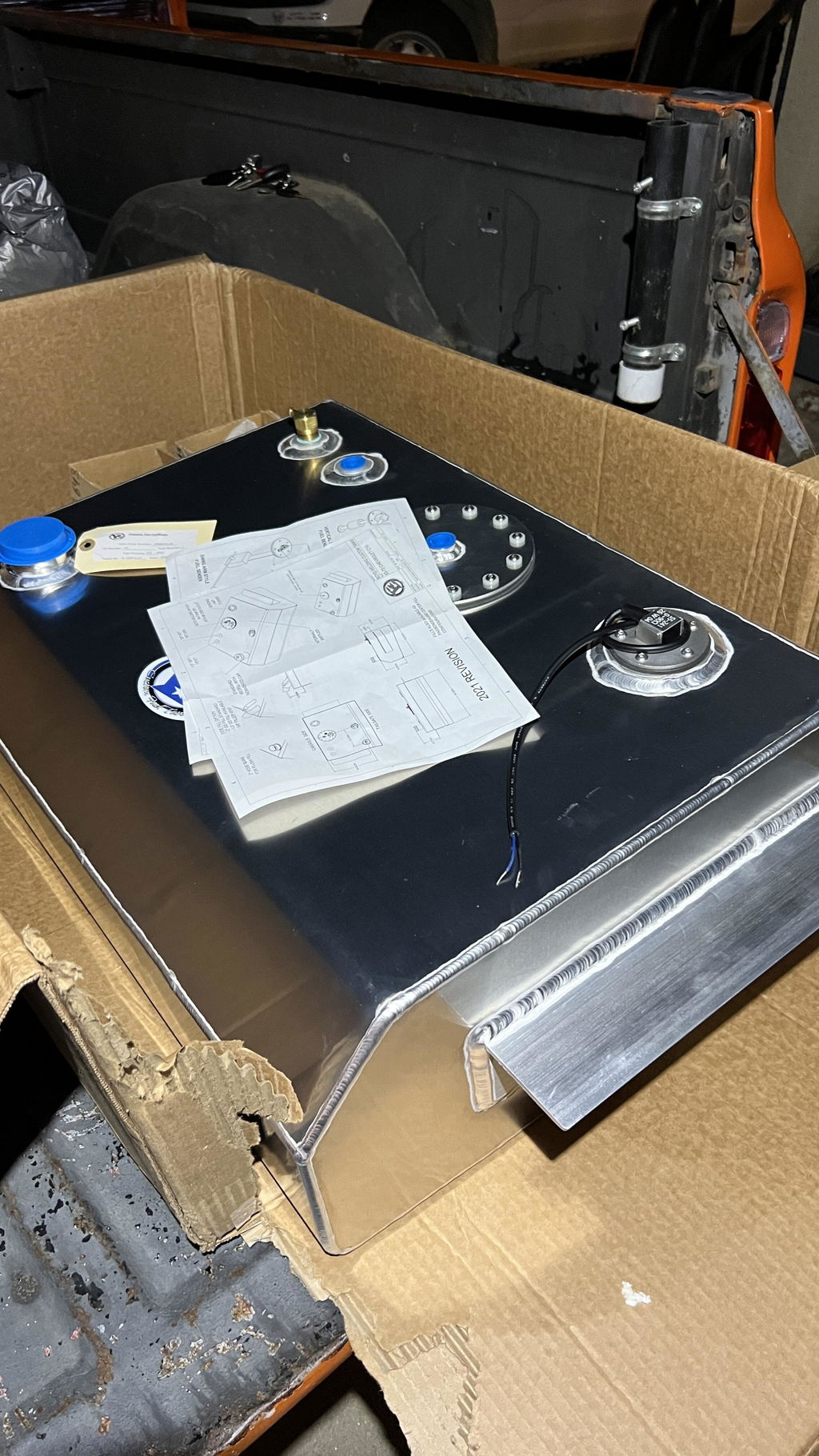

The Boyd Tank looks absolutely amazing. Installing this weekend. Almost hate to hide it under the bed it’s so Beautiful. Travis an Simple C10 make every purchase as simple as possible and will help and answer any questions you may have.

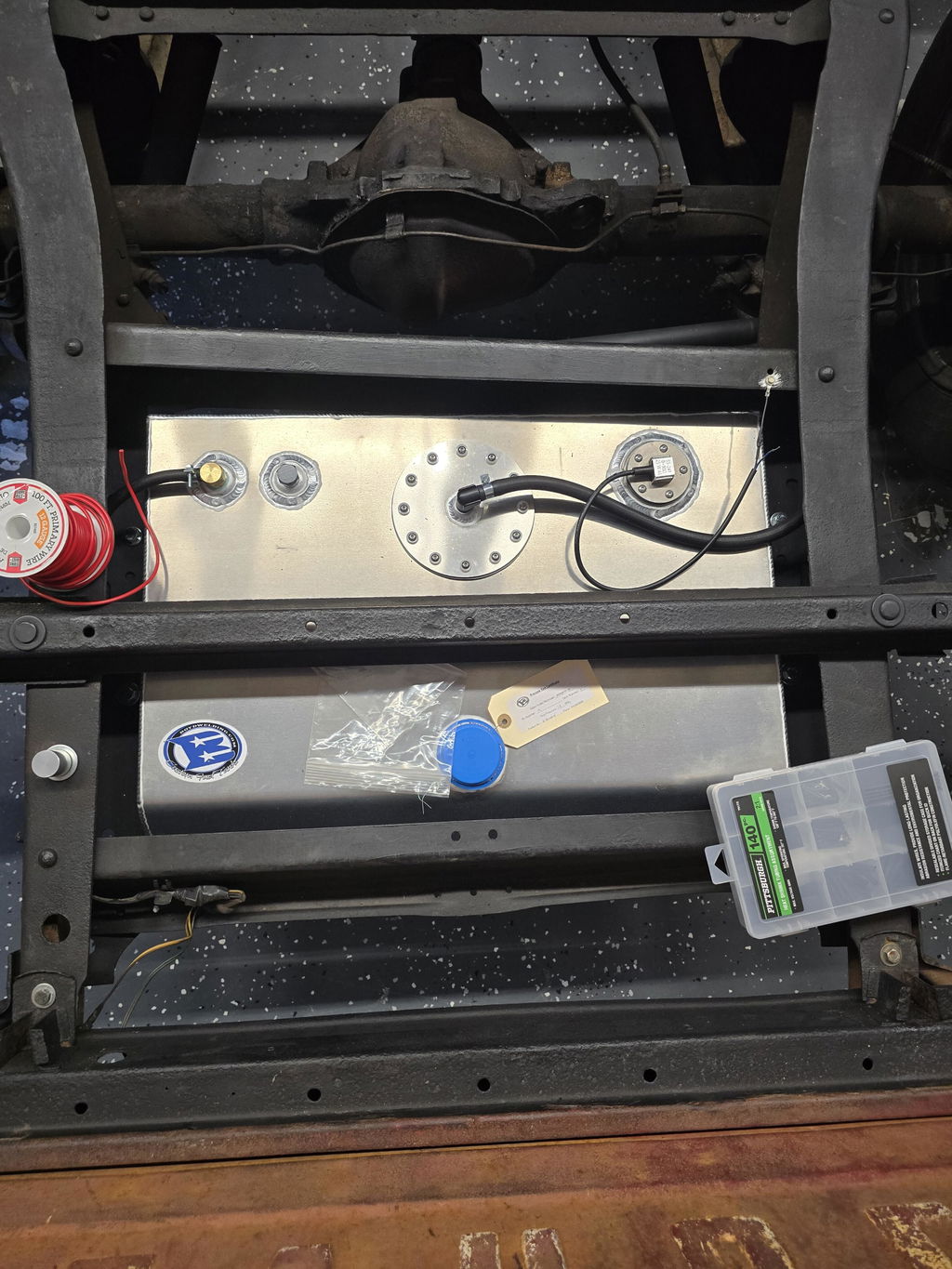

Awesome tank finally got it installed, im finishing up the wiring, put wood back in bed, then cut hole out for the flush mount lid, me & wife love the shirts, thanks again Travis, will send pictures
Works perfect. Looks awesome. And answered every question I had. Looking forward to more purchases

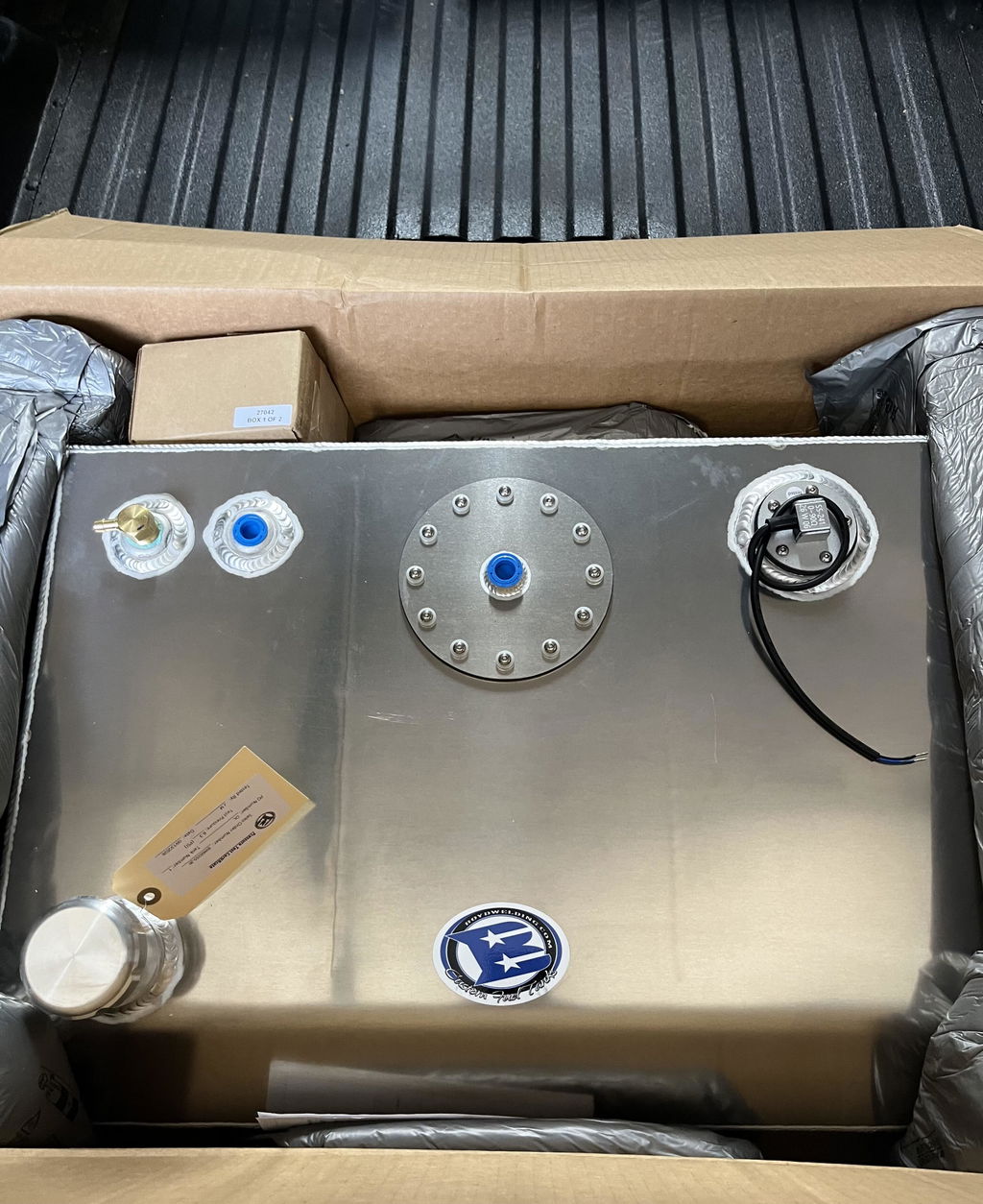

I reached out to Travis after finding a seam leak in my cab mounted tank to see if he sold rear mounted tanks not knowing he was a Boyd's Welding tank vendor. Travis was quick to respond sending me a link to the correct tank for my 65 swb fleetside c10. EZ-Peasy and they ship directly from their shop in Ocala, FL. Shipping was free and it was well padded, arriving with a slightly damaged box but no damage to the tank. These are high quality 1/8" welded alum tanks and as soon as this heat drops a little, I will get it installed.
Thanks much for your help Travis
Mike B
About my 20th order from simple C10 . Travis is easy to work with and help you choose the correct parts . Tank is perfect for my build and looks great !
This is a quality piece of work, it will be a while before i have it installed but the test fit was great.
