73-87 14 Bolt Over Axle Rear Kit | C20, C30

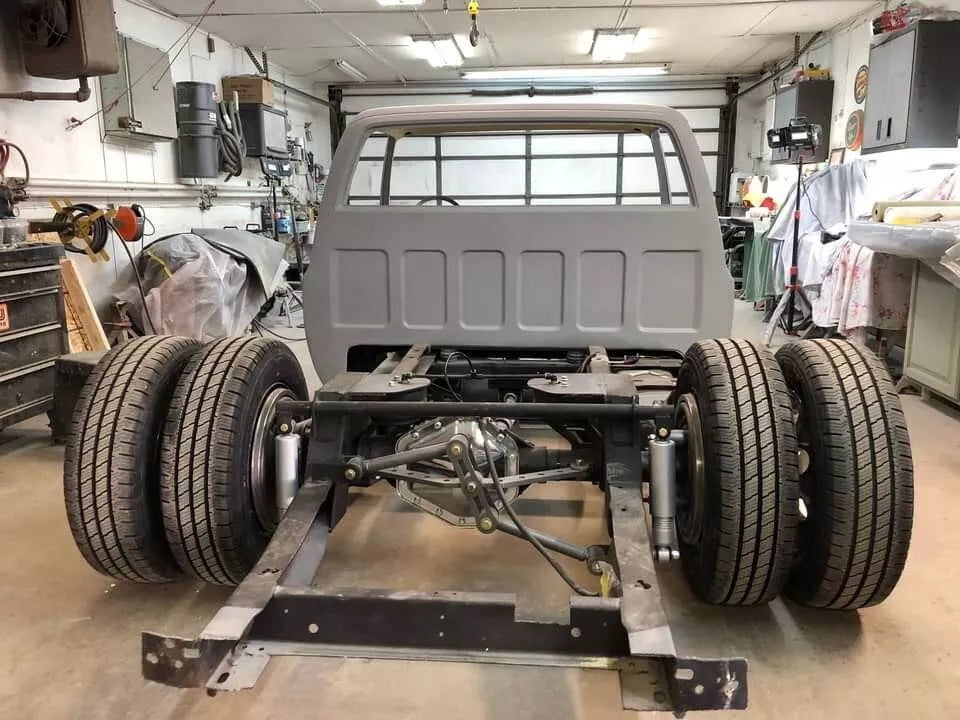

73-87 C10, C20, C30 Rear Complete 4 Link Kit with Cantilever and Watts Link.

Kit Includes:

• 4 Link Mounts
• 4 Link Bars
• Bridge

• Watts Link
• Hardware
• Bag Mounting Brackets

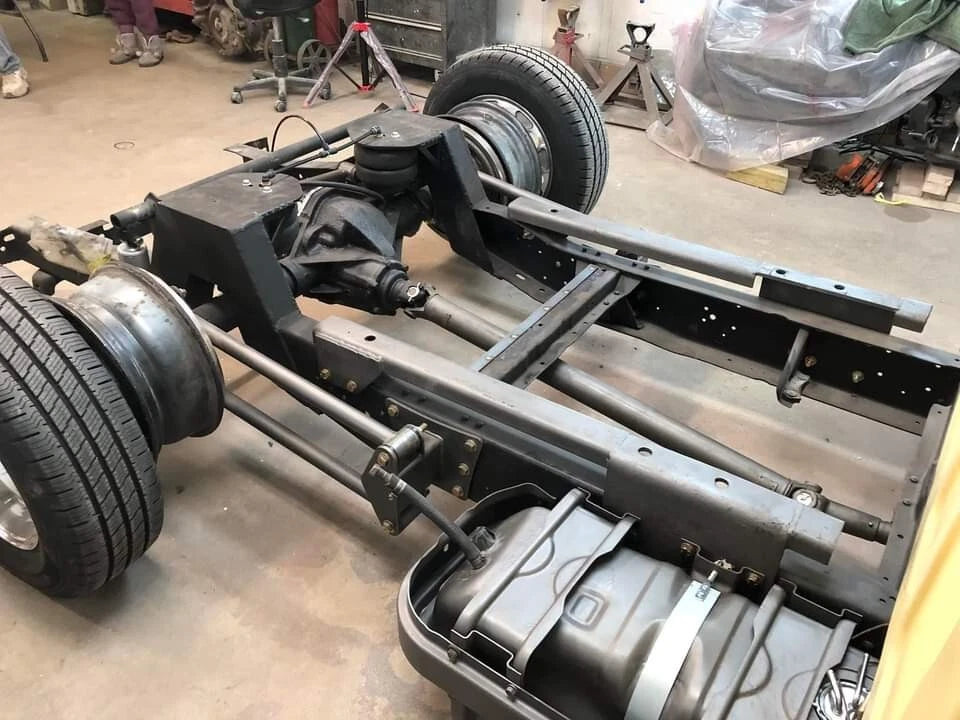

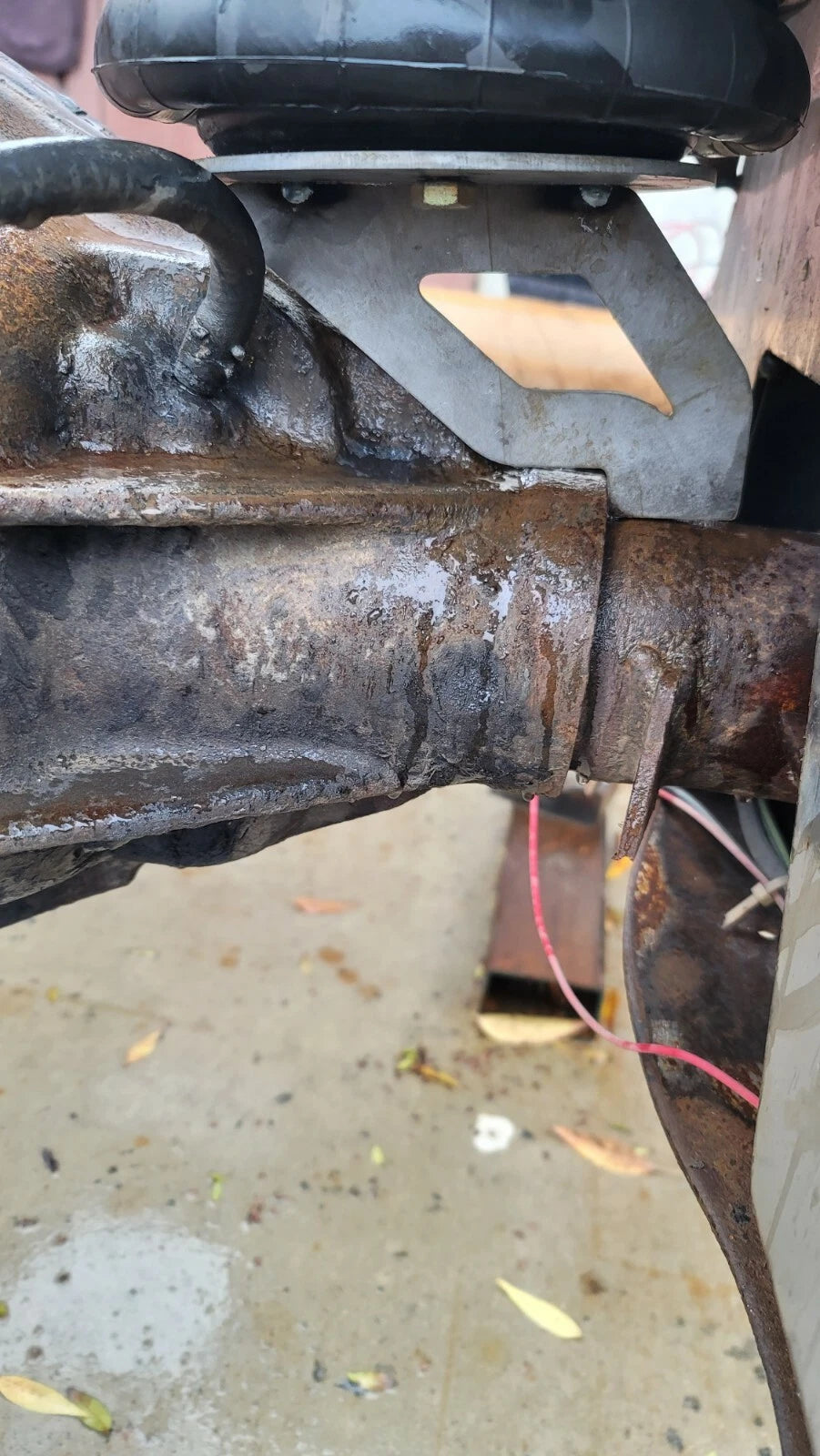

73-87 C20 C30 14 bolt inner over axle bag mounts. This will offset the airbag to clear the 14 bolt center section. All brackets are 1/4", the lower bag bracket is 3/8". The bars are 1.75X.120 tubing. Not pictured, but kit will come with adjustable heims on one end. The front mount is made to bolt onto the front spring hanger. Look at the last picture and confirm that your hanger has the same bolt pattern. If not, send me a picture, and I'll match up the appropriate bolt pattern. Comes with a 4 link that mounts on the outside of the frame with enough clearance for semi wheels. Comes with a weld up c notch. To save on costs and/or customers with existing c notches, I can ship without c notch for 300 off listed price. I will include a Watts link kit made for the 14 bolt diffs

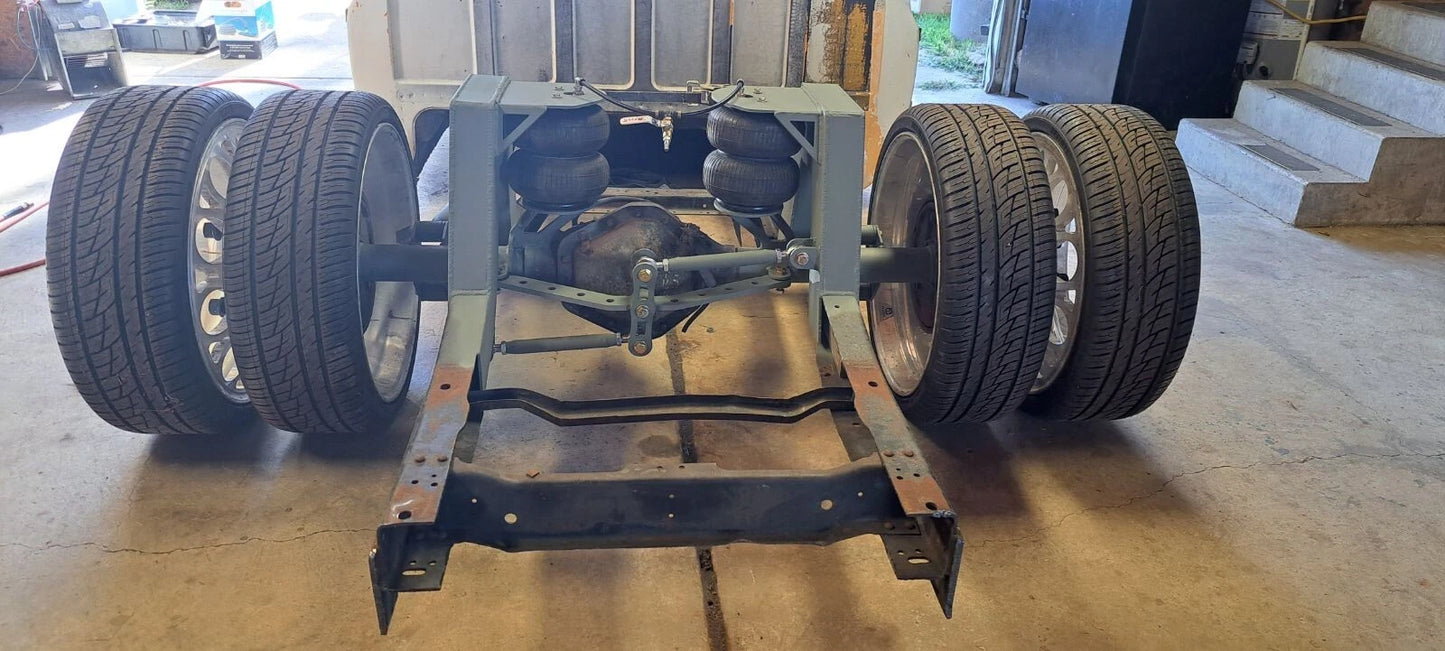

Also offering this kit to be able to run the larger 3800lb airbags. See the last 2 pictures. If you are interested in that kit message me first so I can confirm some dimensions.

Will come with all the hardware and bare metal due to high demand currently, Lead time is 15-20 business days since they are all built to order

I will be making a few variations of this kit to meet everyone's budget. Take a look at all my other auctions for these trucks,

This kit is modeled off a c20 crewcab, which shares the same frame as  c30 duallys also. I also do have the front hanger mount for the 3/4 ton single cabs that have a lighter duty frame. Which this kit will work on also. Made to lay frame on a 30" diameter tire and keep the axle centered in the wheel well when laying frame

If you have any questions, feel free to send me a message

If you want to use a smaller/larger axle, email me (thesimplec10@gmail.com) so i can confirm i can accommodate that. Will come with all the hardware and powdecoated black. Lead time is 15-20 business days since they are all built to order and demand. I will be making a few variations of this kit to meet everyone's budget.
