73-87 Complete Bolt In 4-Link + Cantilever + Watts Link | C10, C20, C30

73-87 C10, C20, C30 Rear Complete 4 Link Kit with Cantilever and Watts Link.

Kit Includes:

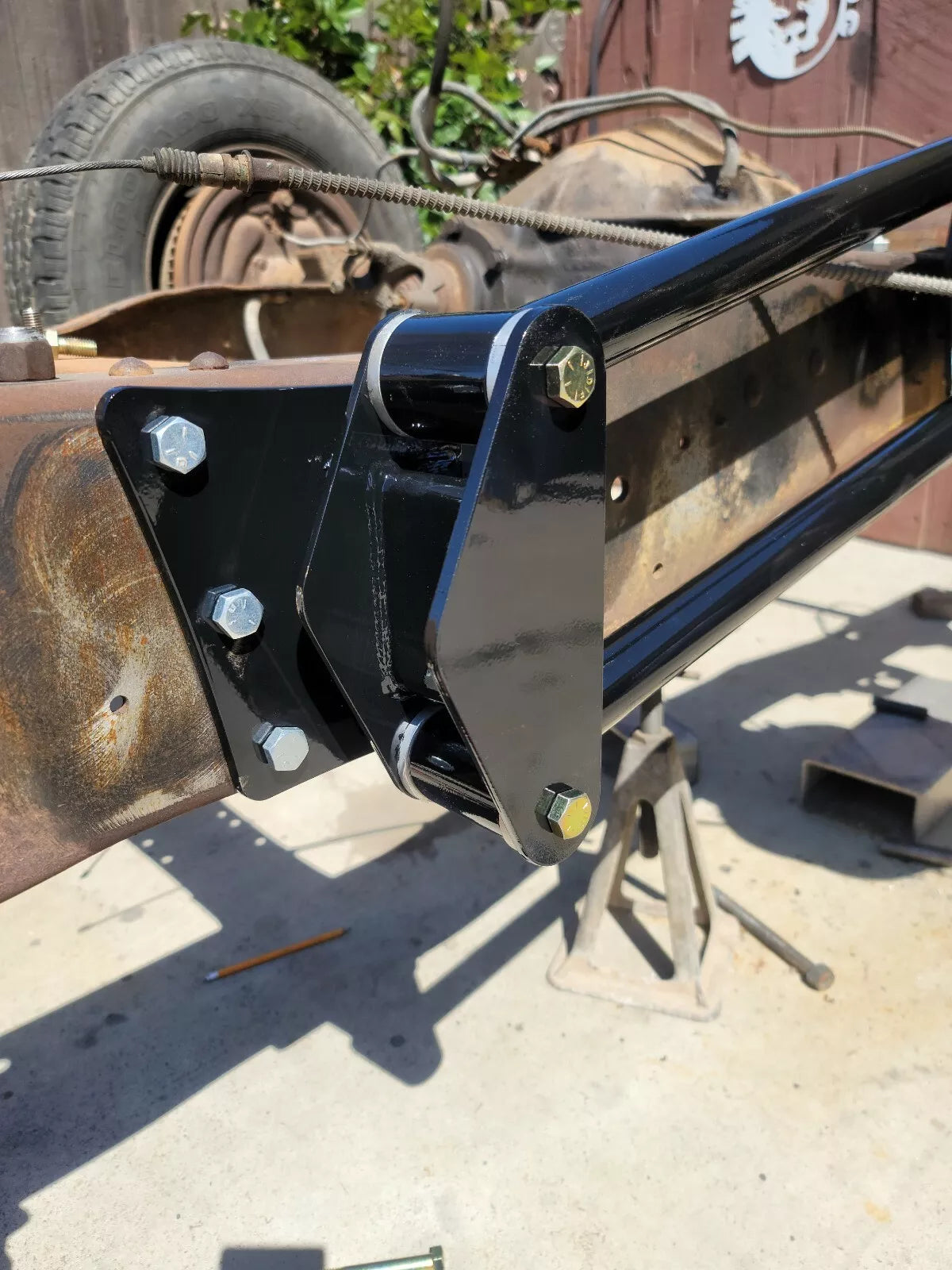

• 4 Link Mounts
• 4 Link Bars

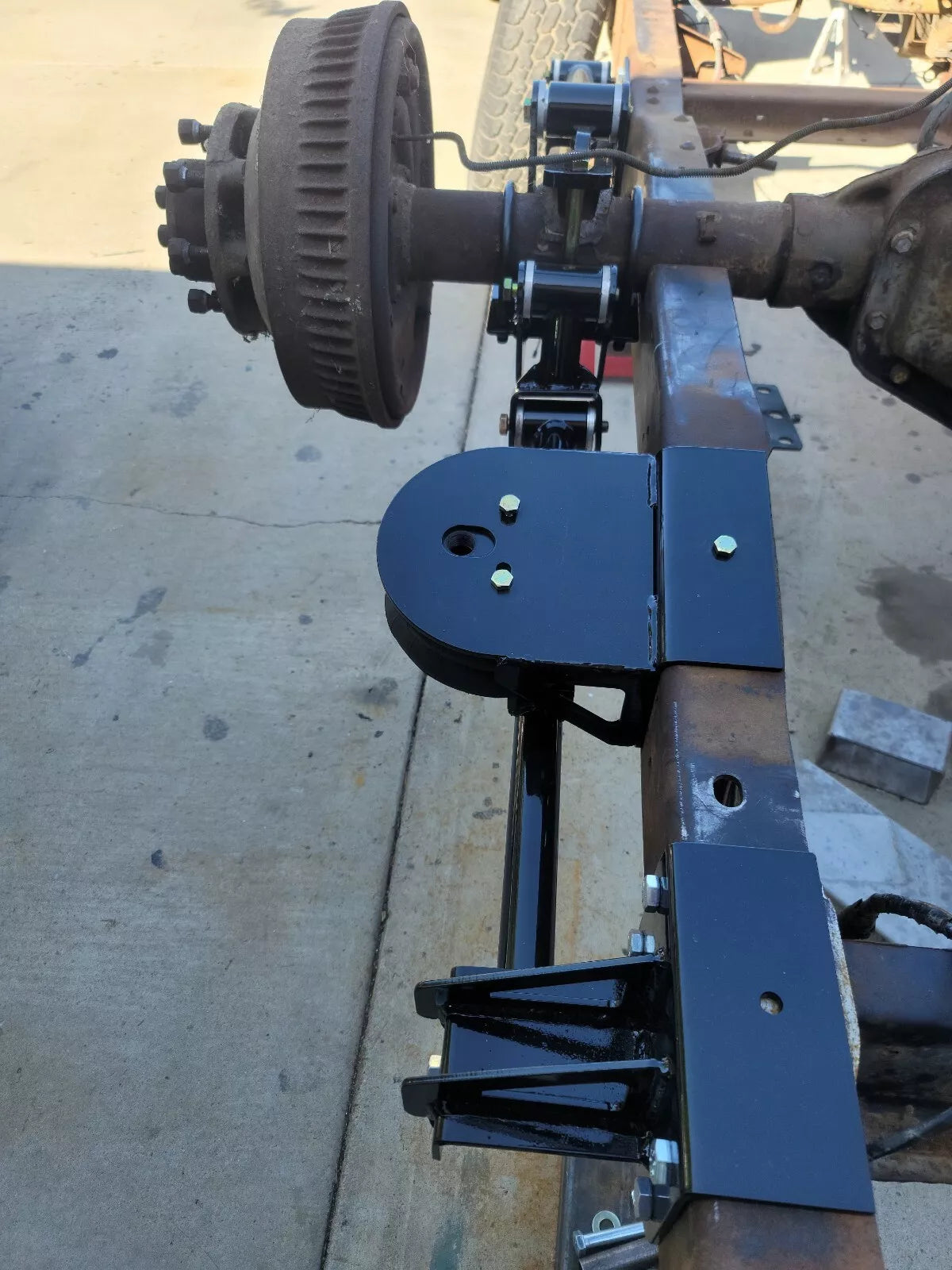

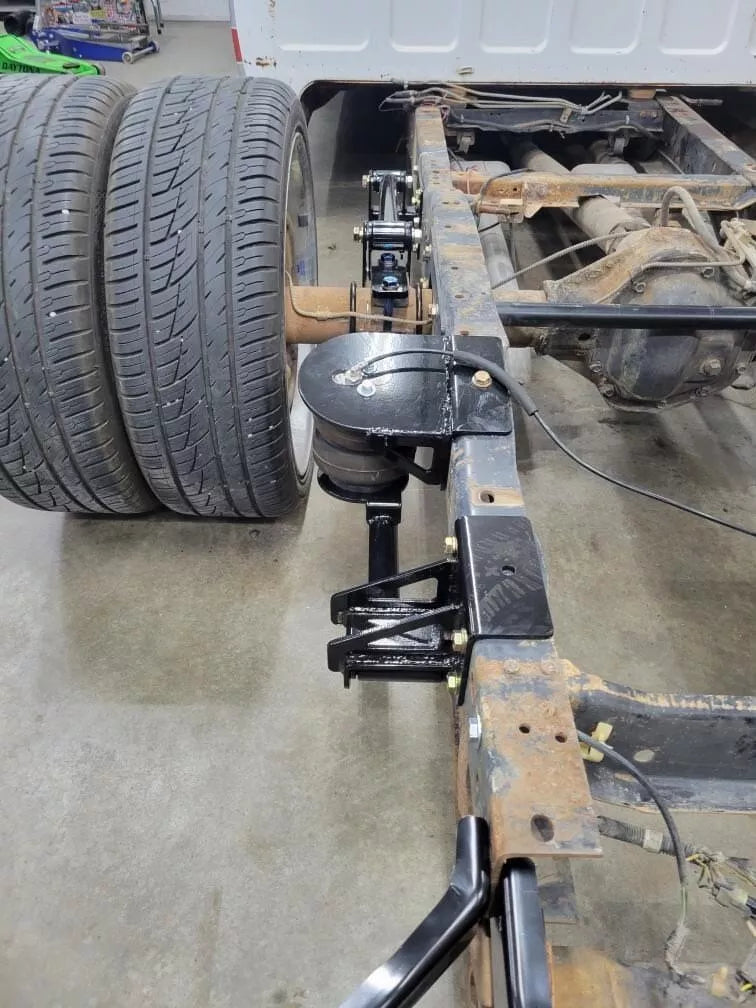

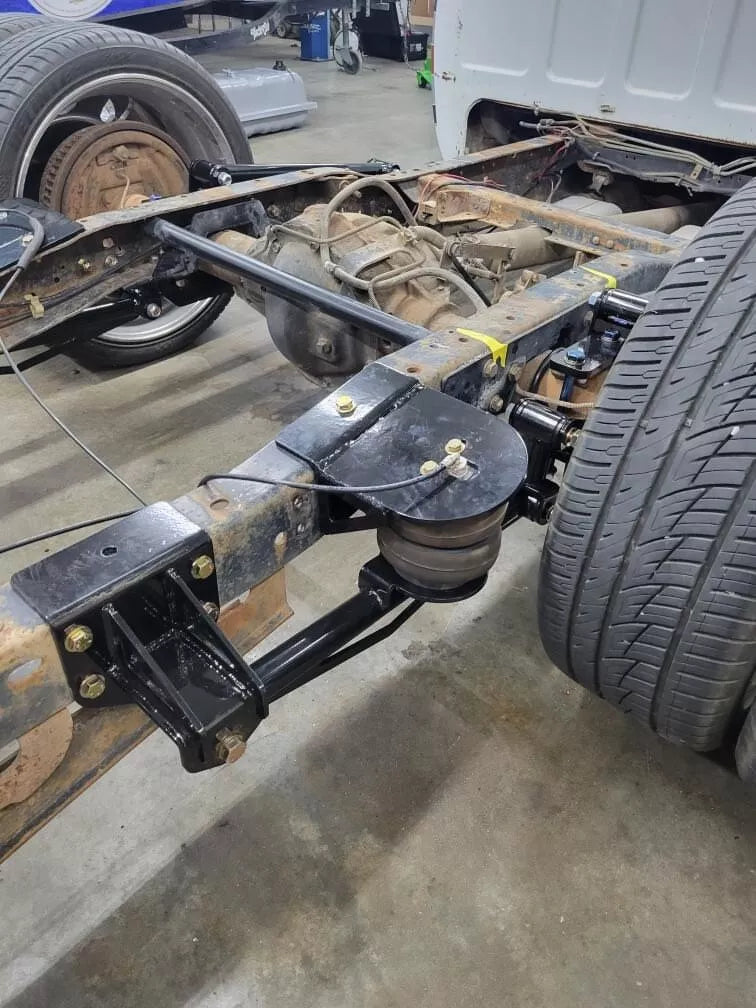

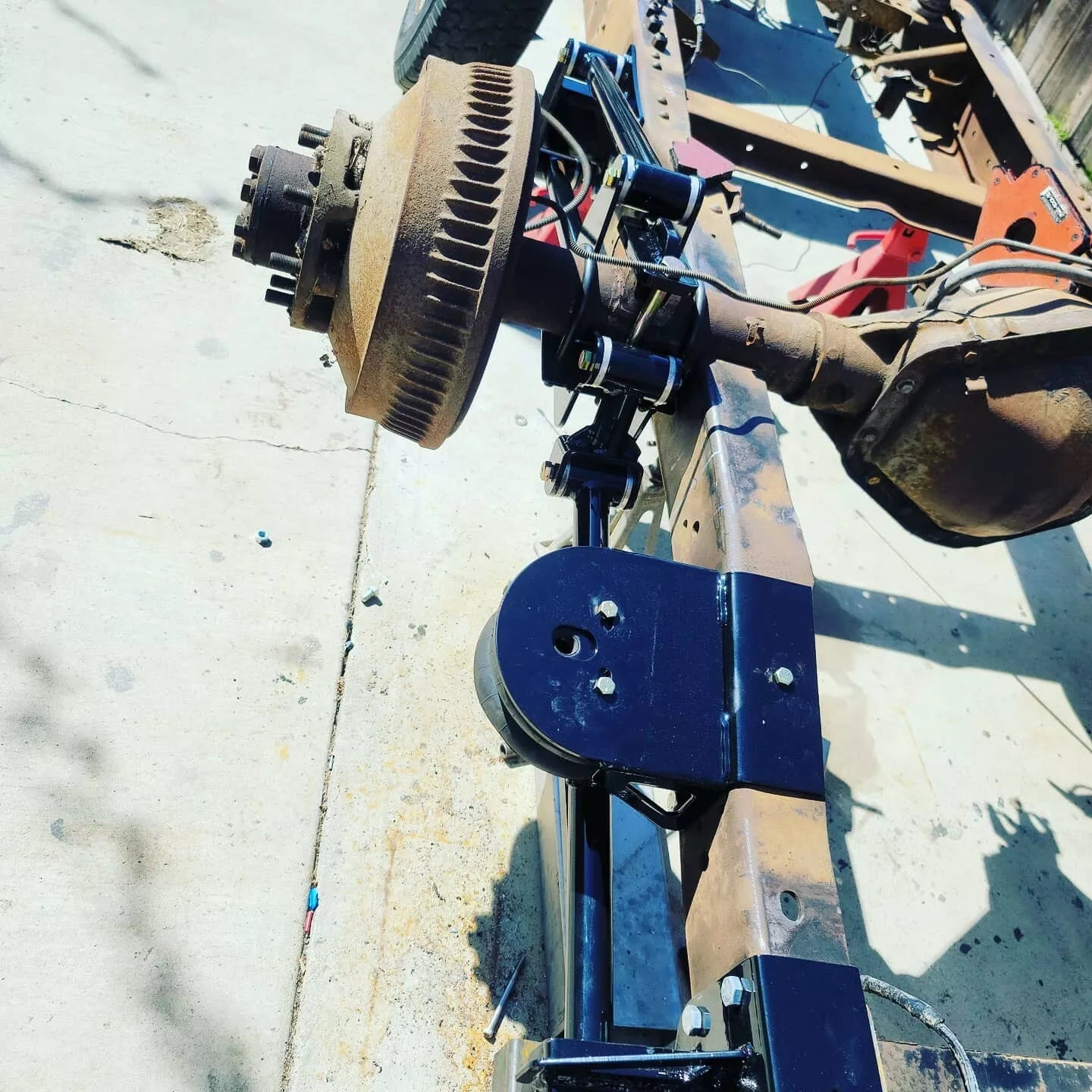

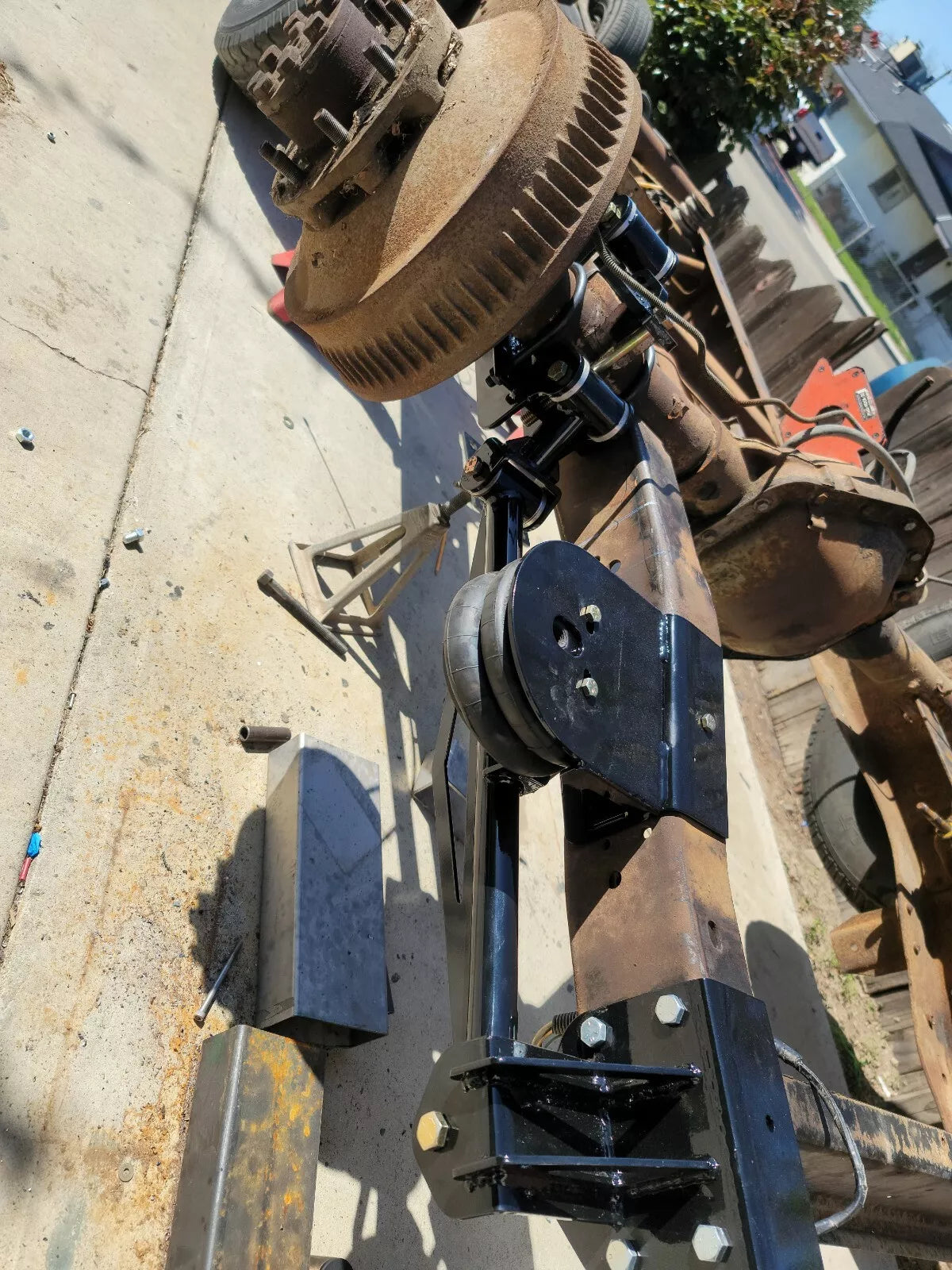

• Cantilever Bars and Brackets

• Watts Link
• Hardware
• Bag Mounting Brackets

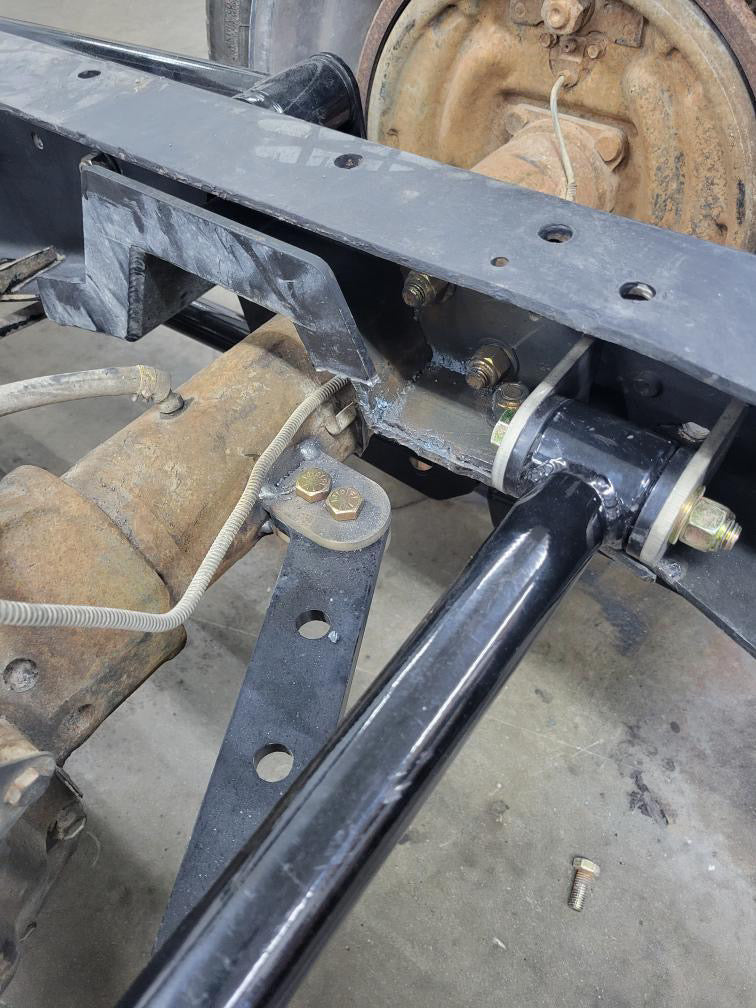

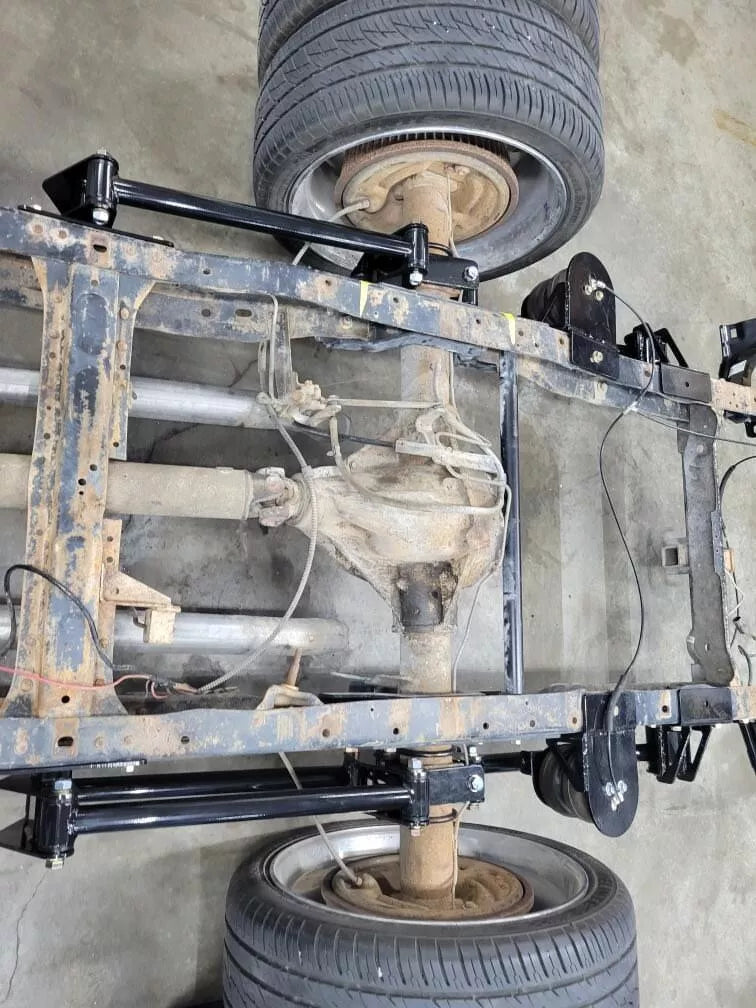

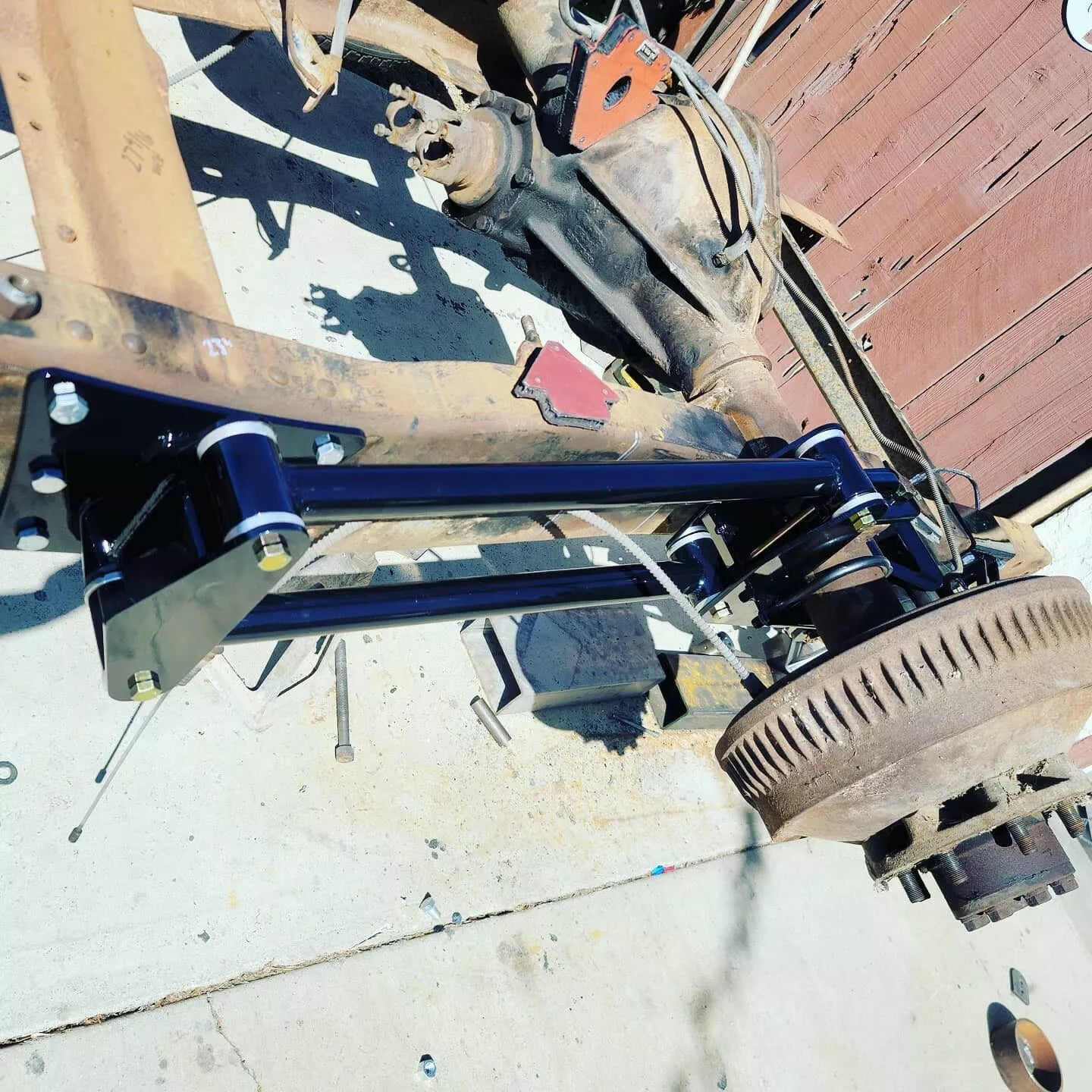

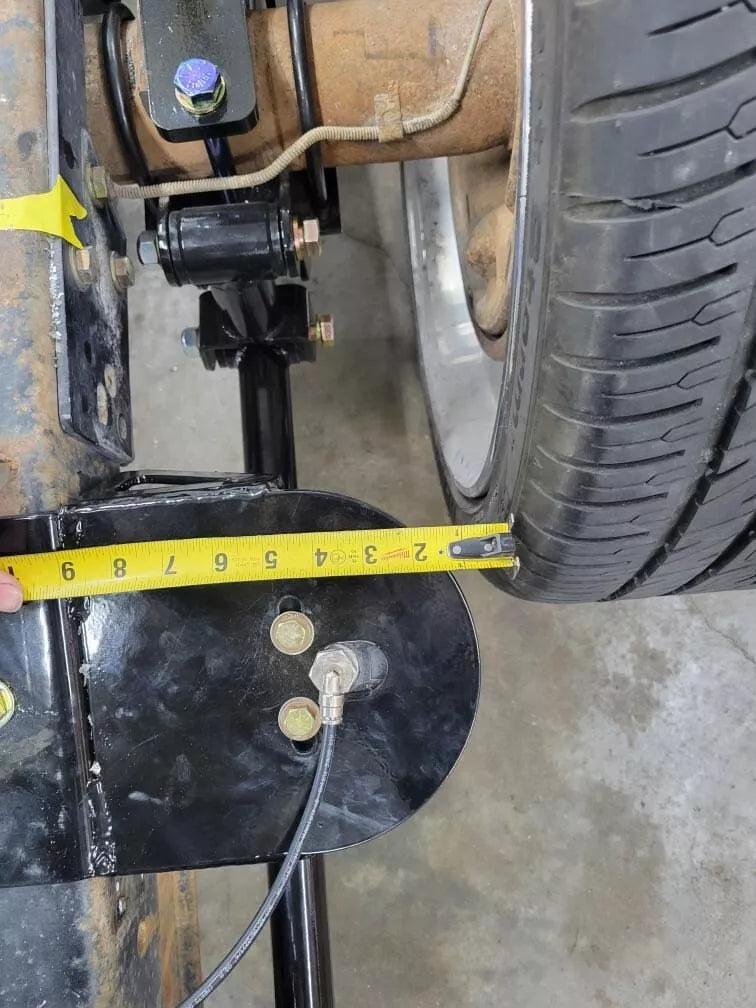

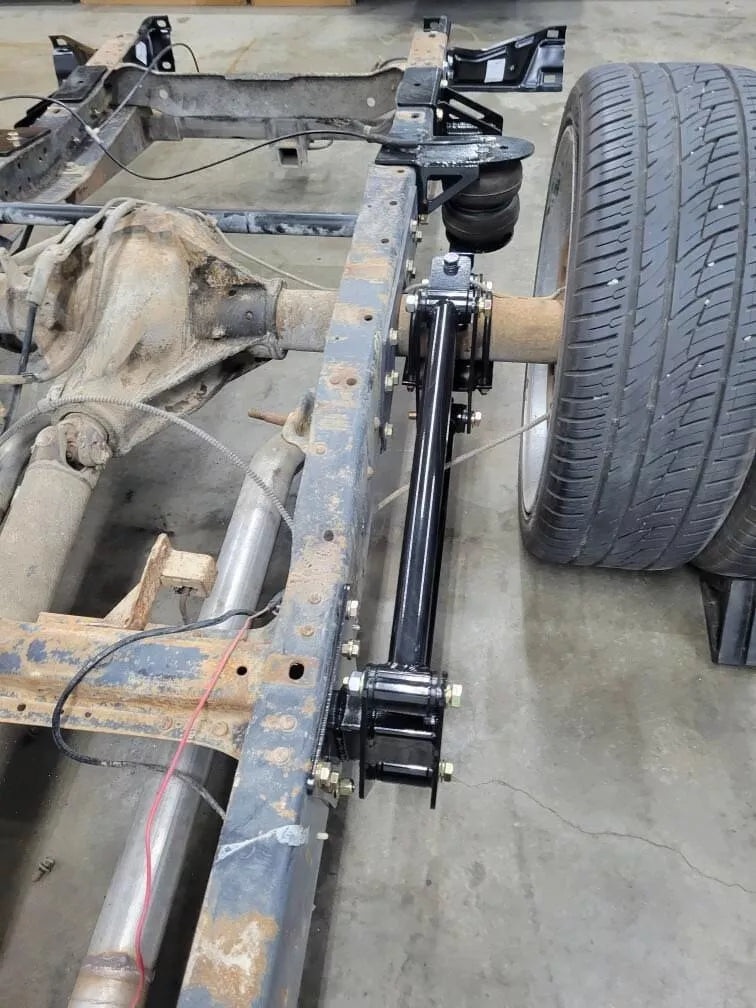

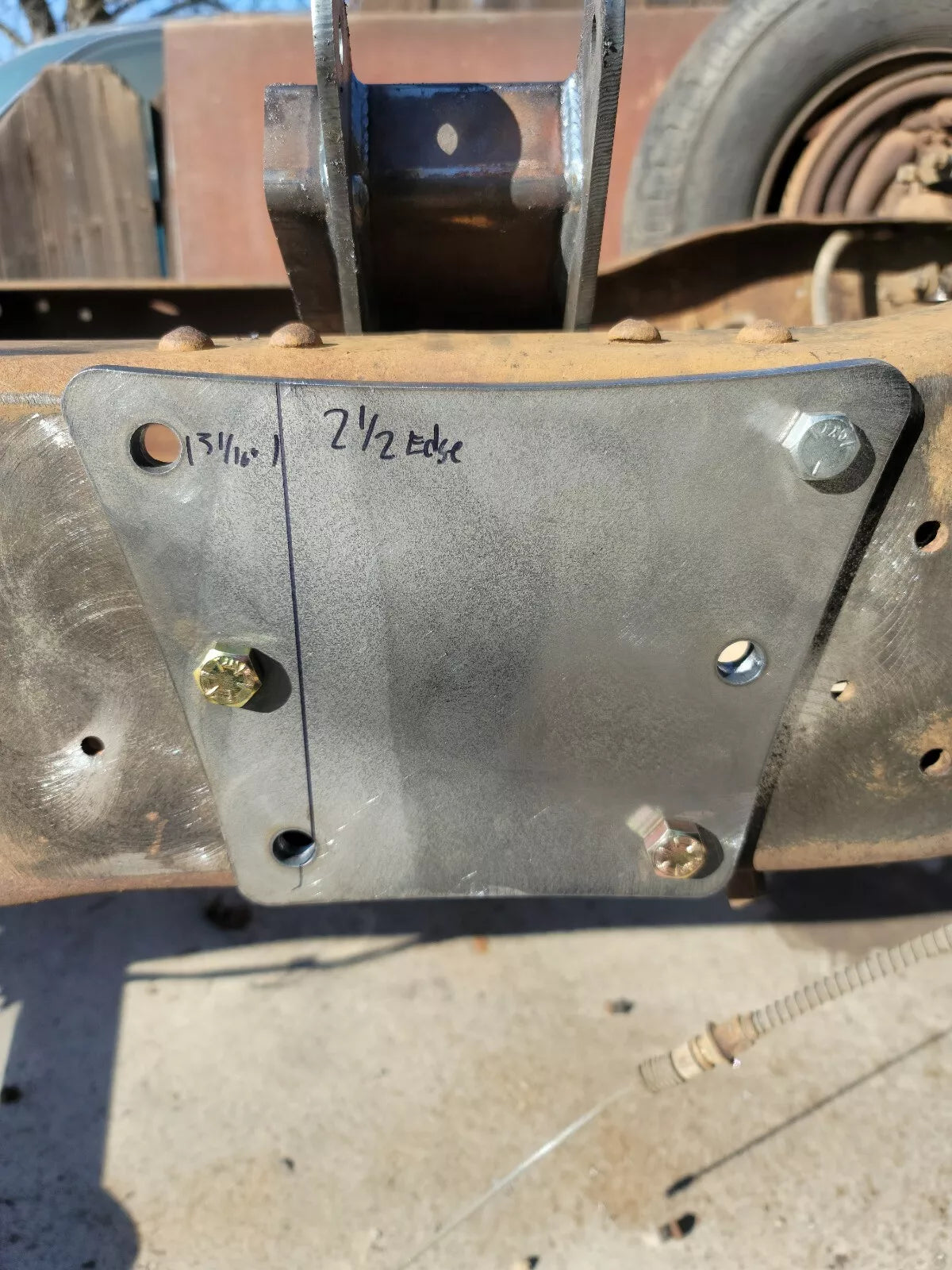

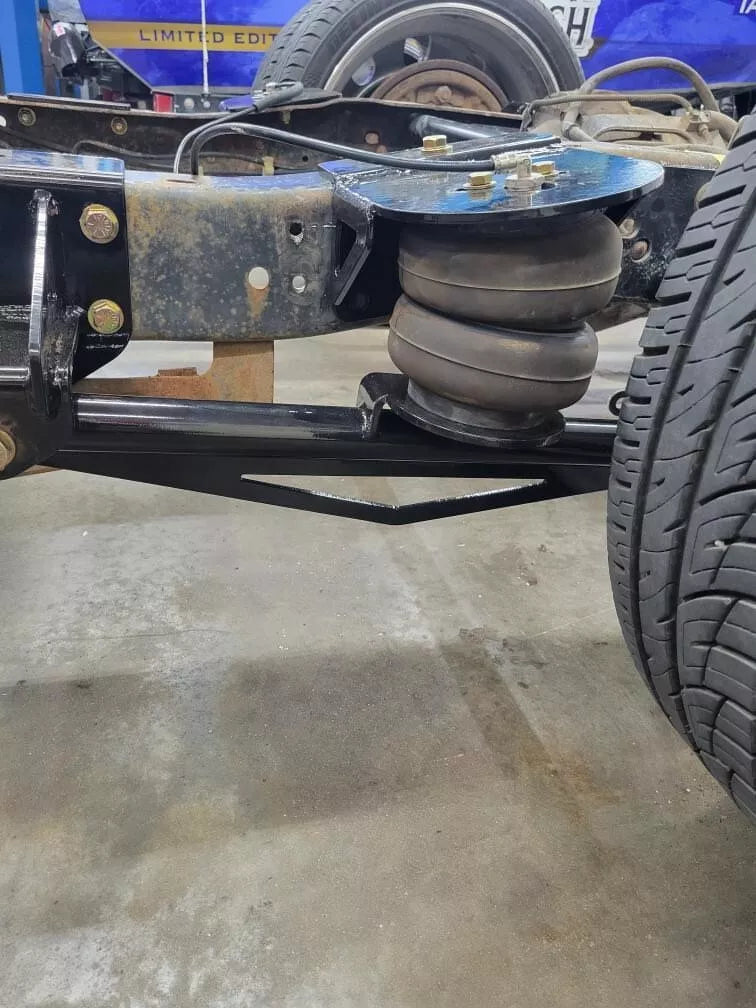

73-87 C20 C30 Bolt On 4 Link with a cantilever set up for the airbag. All brackets are 1/4". The bars on the 4 link are 1.625"X .15 wall thickness. The bars for the cantilever are 1/4" wall. Look at the last picture and confirm that your hanger has the same bolt pattern. Otherwise, it will not bolt up. It's 100% bolt on. The only thing you have to do is trim the axle perch a bit for clearance. Made to use a 14 bolt axle. Due to the placement of an airbag, you can not run standard 22" alcoa semi wheels. The only ones that will work are the flat face ones. Confirm you have 9" from frame to inner tire/wheel.

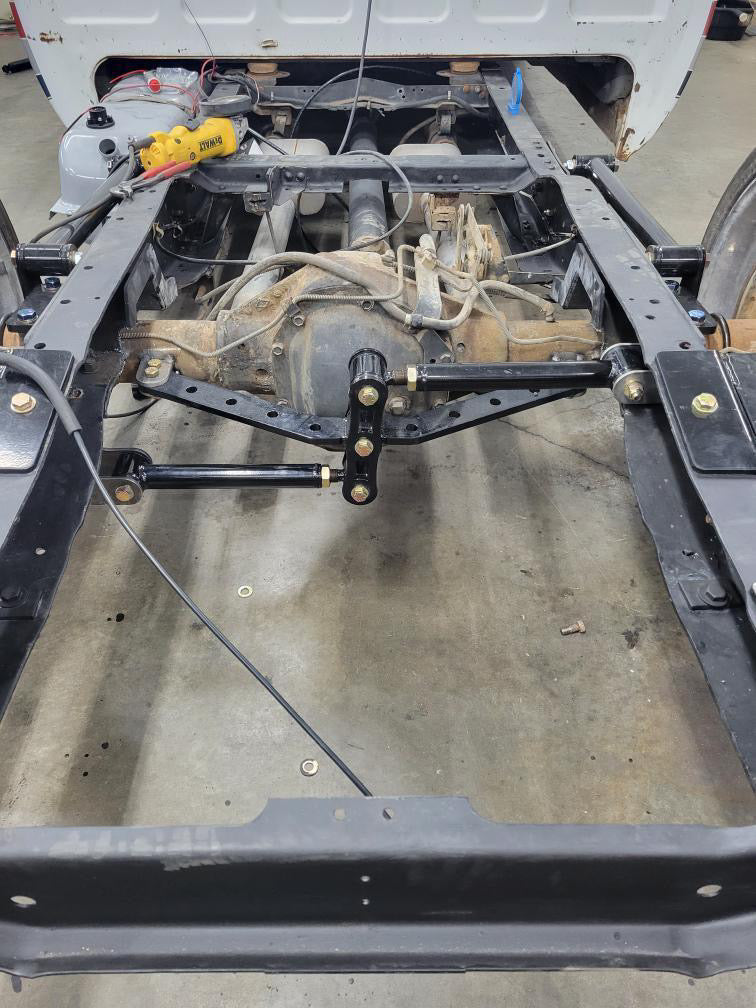

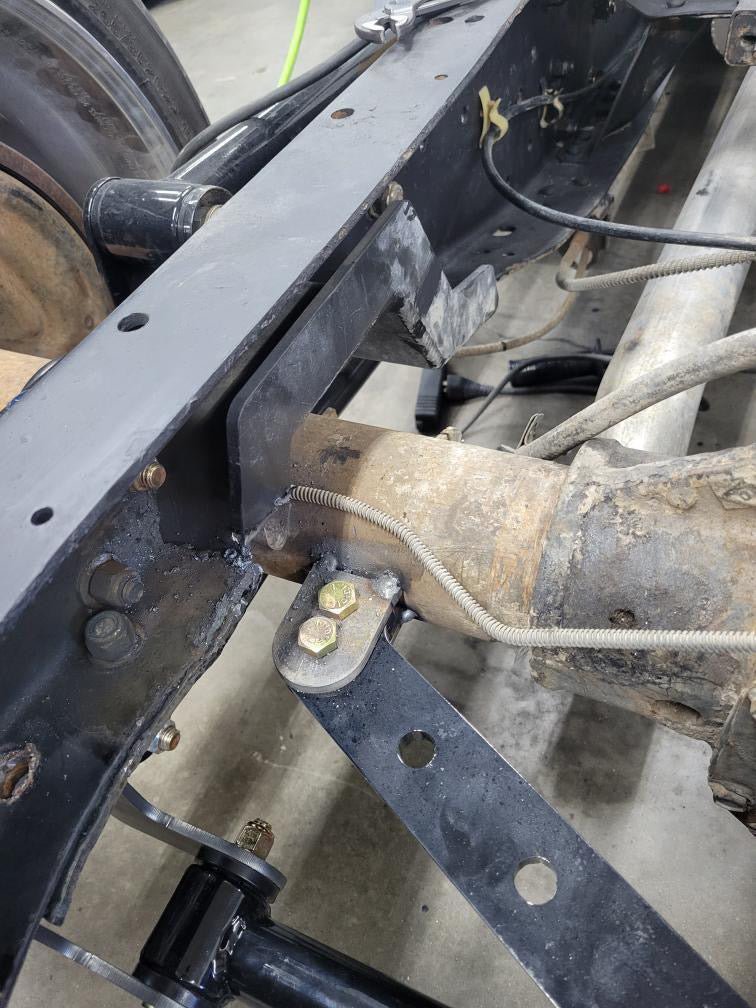

This kit comes with a watts link but must be welded on. We do not currently have an option for a bolt on watts link or panhard bar.

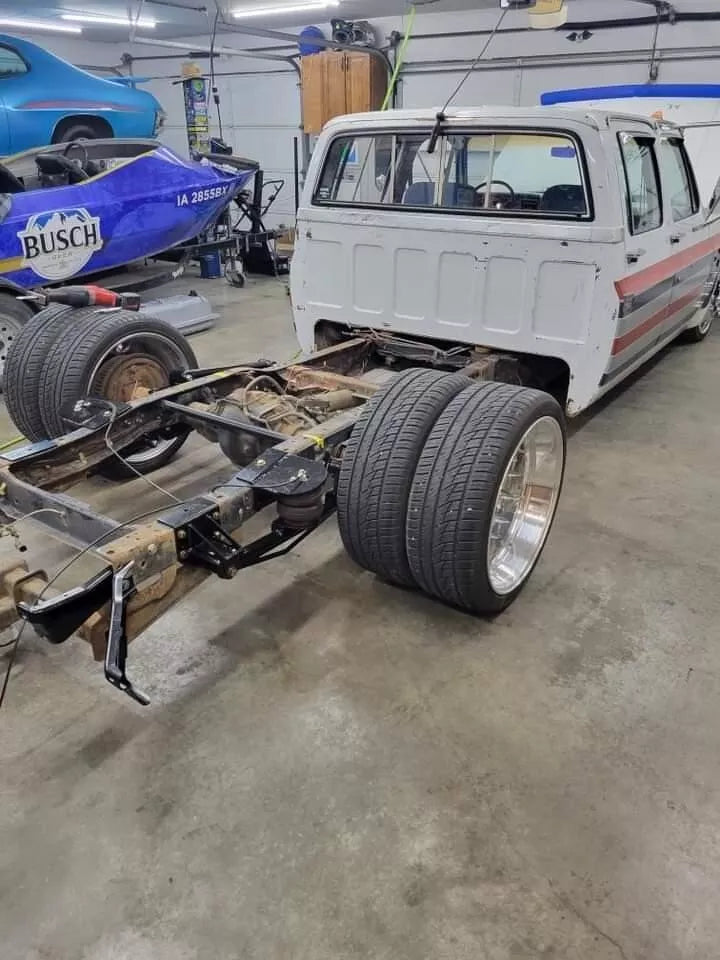

This kit will fit under your stock bed floor on a mini notch but we also have an option to lay frame on a monster notch. This requires a longer dogbone on the cantilever.

If you want to use a smaller/larger axle, email me (thesimplec10@gmail.com) so i can confirm i can accommodate that. Will come with all the hardware and powdecoated black. Lead time is 15-20 business days since they are all built to order and demand. I will be making a few variations of this kit to meet everyone's budget.
