73-87 Weld On 4 Link Cantilever Kit + Watts Link | C20, C30

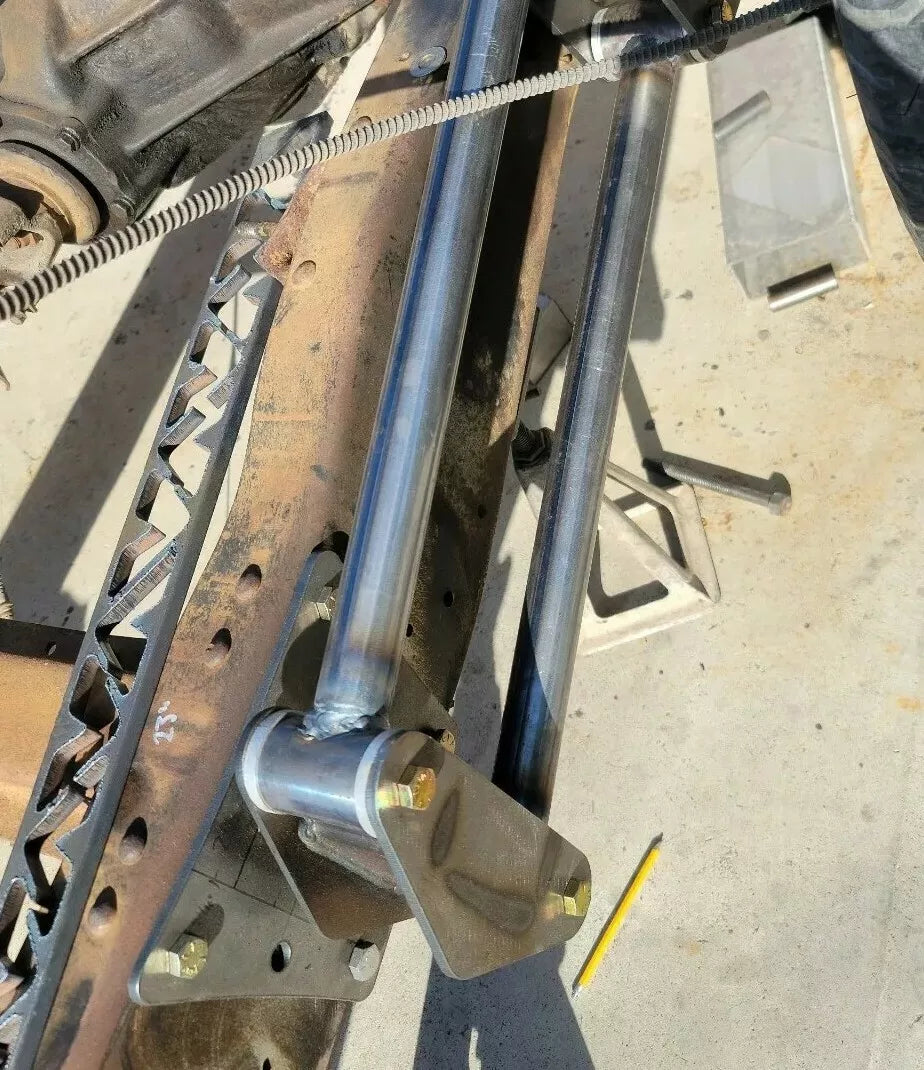

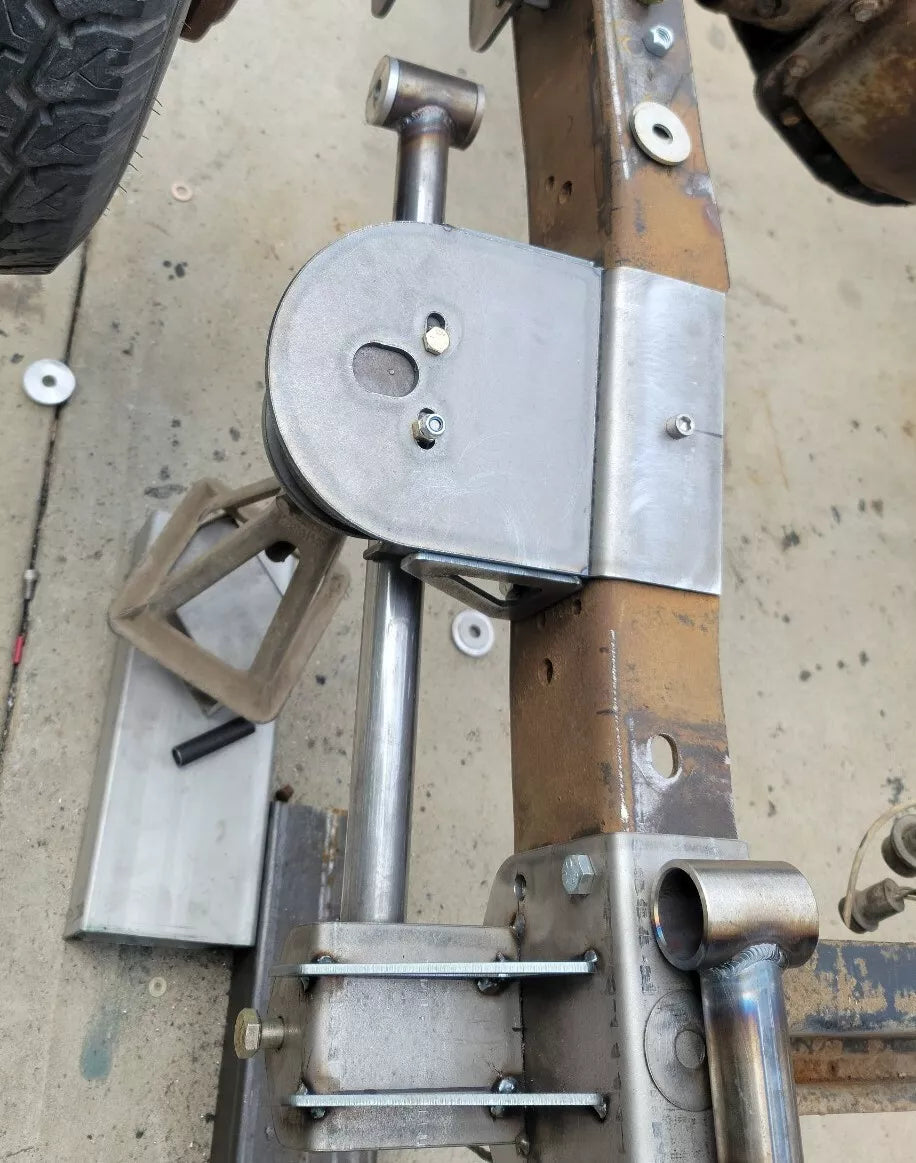

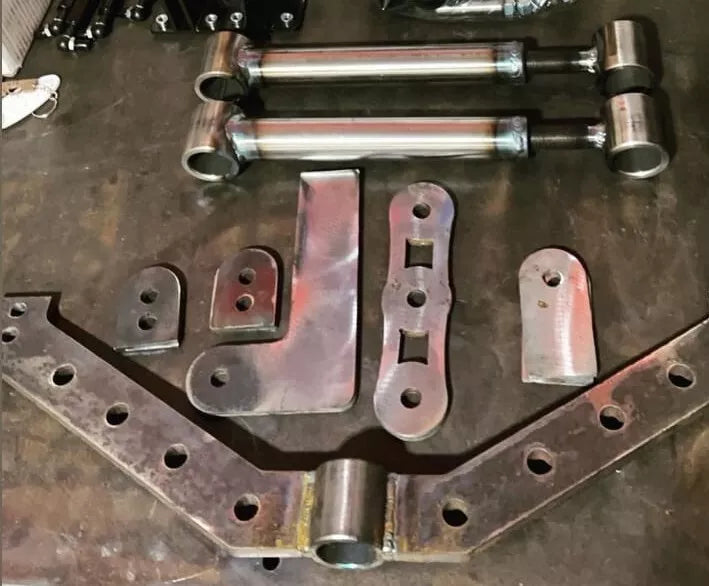

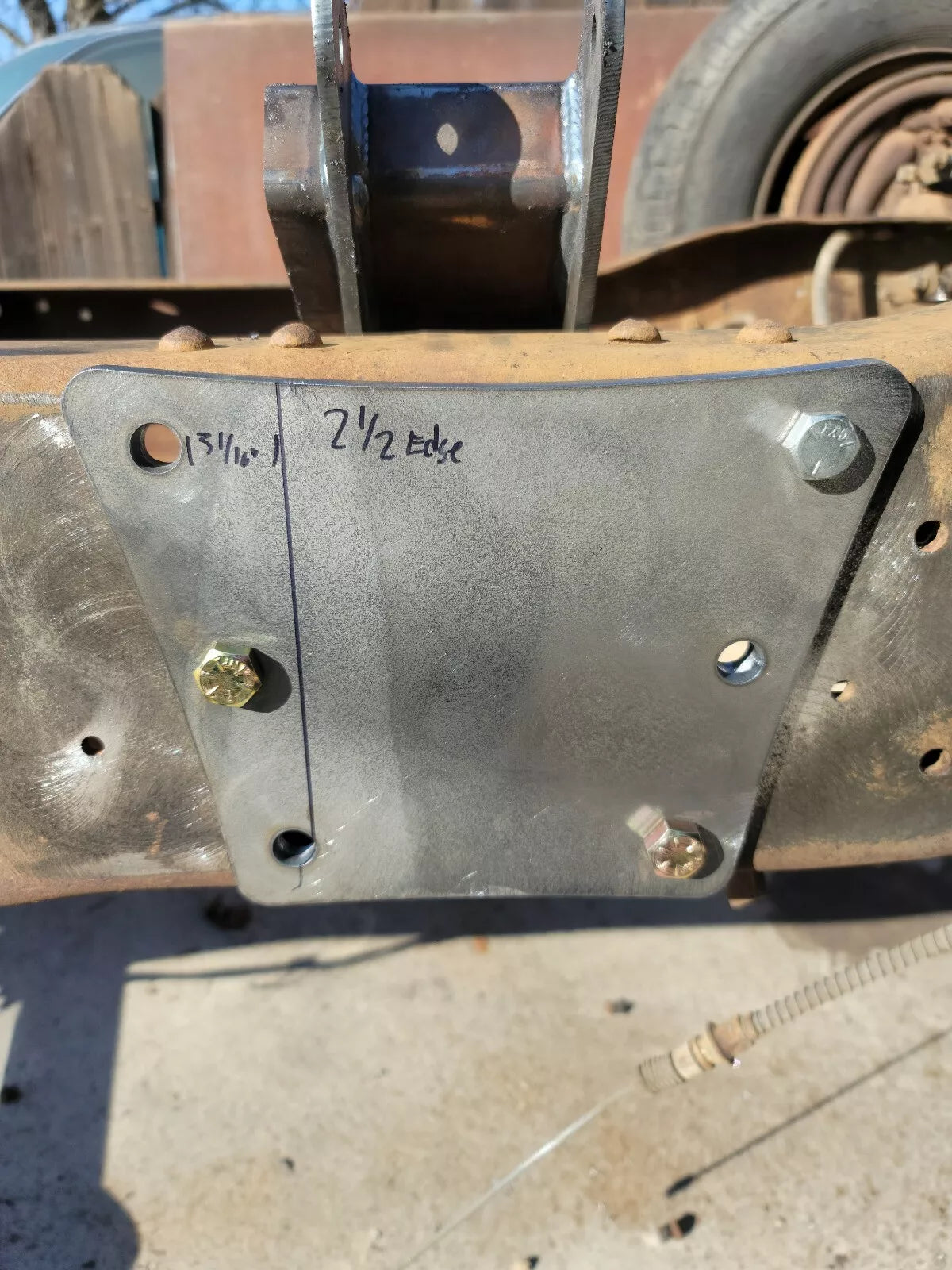

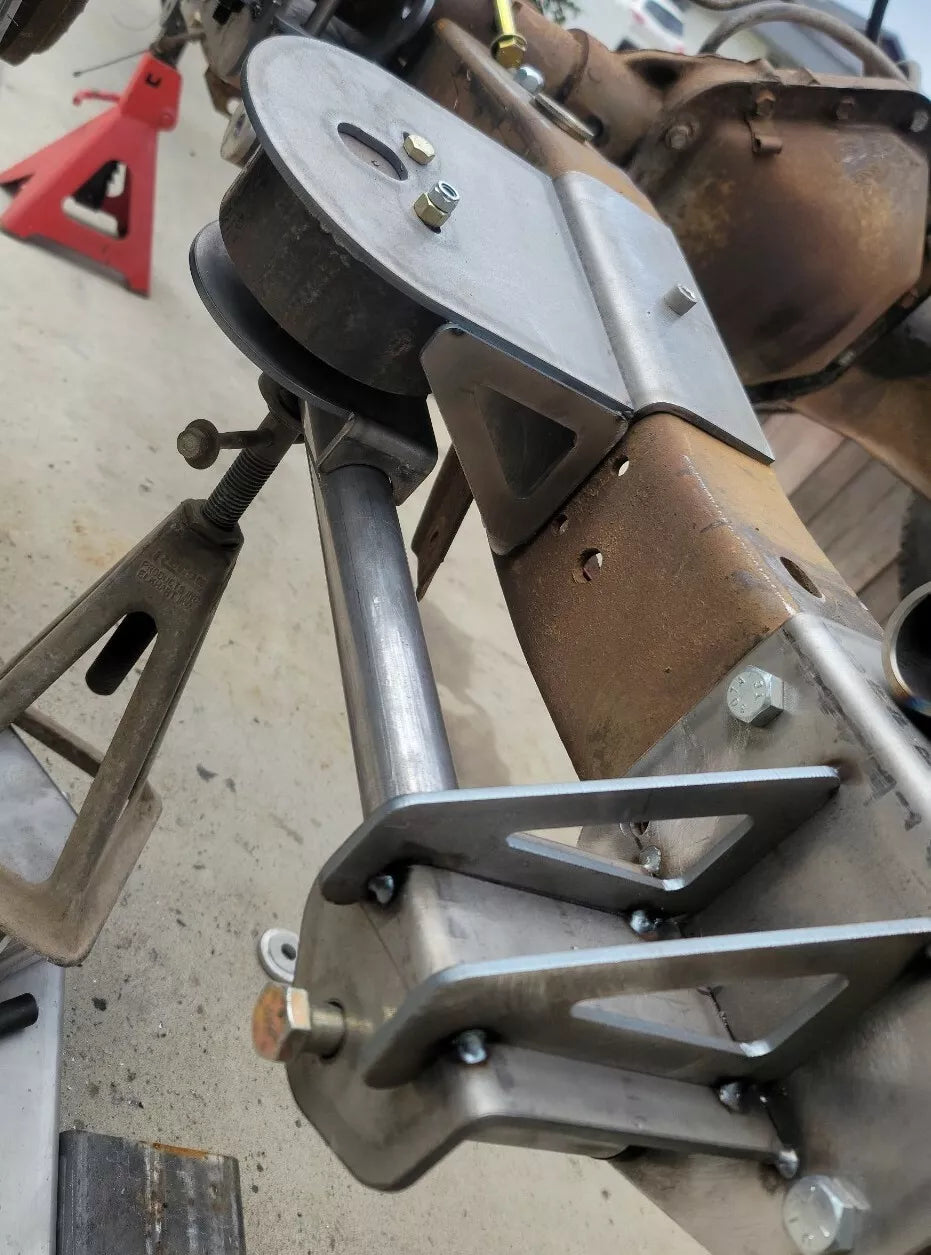

73-87 C20 C30 weld On 4 Link with a cantilever set up for the airbag. All brackets are 1/4". The bars on the 4 link are 1.5"X .125  wall DOM tubing The bars for the cantilever are 1/4" wall. It will come with weld on axle brackets. The front mount and rear cantilever will bolt up to stock hanger mounts. Look at last picture and confirm your hanger has same bolt pattern otherwise it will not bolt up. Made to use a 14 bolt axle. Please confirm you don't have the dana 70HD before ordering. If you do let me know and I can adjust brackets to the larger 4" tubes.

If you are wanting to use a smaller axle, email me so i can confirm i can accommodate that. Will come with all the hardware and bare metal. For an additional 100 I can powdercoat everything except for axle brackets any standard color

Lead time is 15-20  business days since they are all built to order. I will be making a few variations of this kit to meet everyone's budget. Take a look at all my other auctions for these trucks. This kit is modeled off a c20 crewcab, which will work on c30 duallys also with 40.5" spring perch centers. Will not work on duallys running 22" alcoas

thesimplec10@gmail.com 615-578-4540

Information provided by Alex V Metalworks
