Aeromotive A1000 In-Tank Fuel Pump

P/N 18668 features:
Aeromotive A1000 Fuel Pump
100 Micron stainless steel Fuel Filter / Pickup
20″ long 3/4″ aluminum tube w/ 90 degree bend
Gaskets, mounting ring, bolts and washers for a positive seal mounting

View Installation Instructions

Adapter Plate Add On Information:

Adapter plate needed for use with Boyd Welding Tank

Product # 44032

Material = CNC Machined 6061-T6
OD= 6.00"
ID= 3.510"
Height = 0.500"
Installed height without pump = 0.625"
Bolt Circle A (BW EFI) = x12 @ 5.00" BCL
Bolt Circle B (Aeromotive) = x10 10-32 @ 4.00" BCL

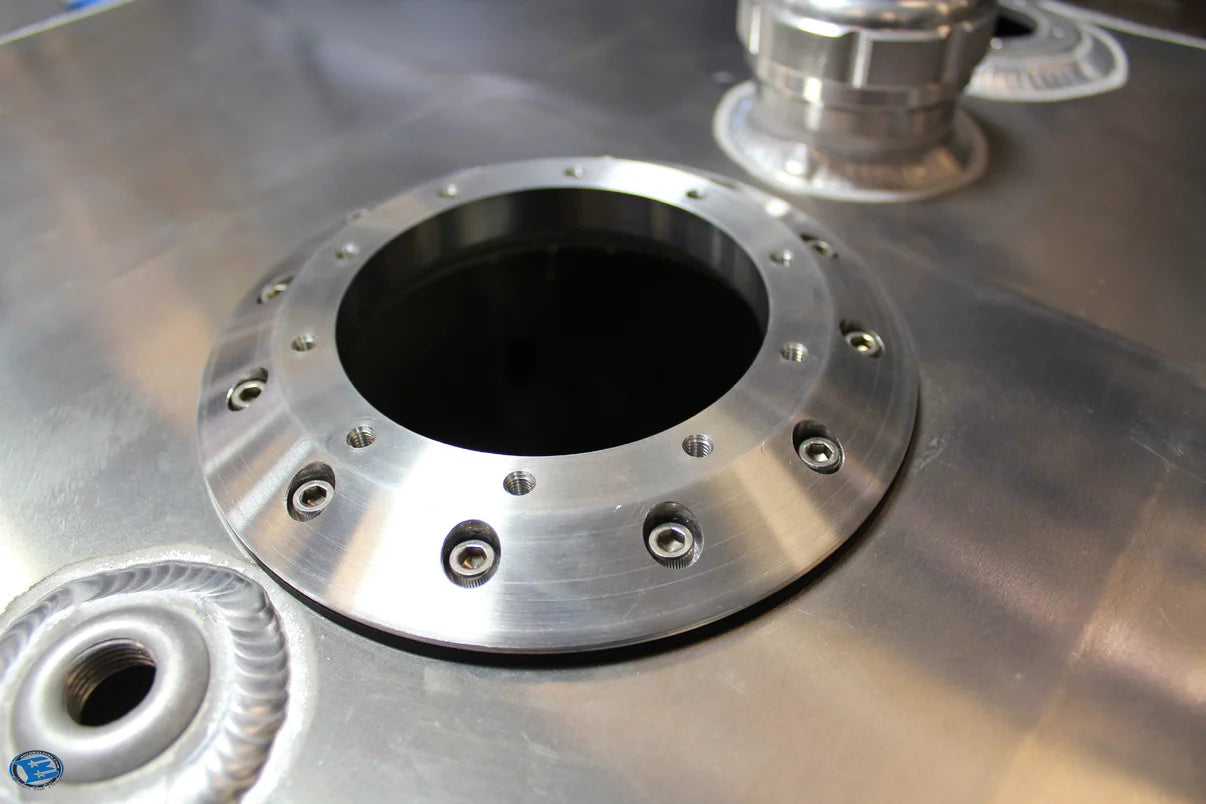

This CNC machined aluminum adapter will allow you to adapt any
Aeromotive phantom 340, A1000 or Eliminator in tank pump that utilizes the
10 bolt pattern to the Boyd Welding 12 bolt pattern.
NOTE: THIS ADAPTER WILL NOT WORK WITH AEROMOTIVES TRIFEKTA #18311 OR PHANTOM DUAL 450 #18635

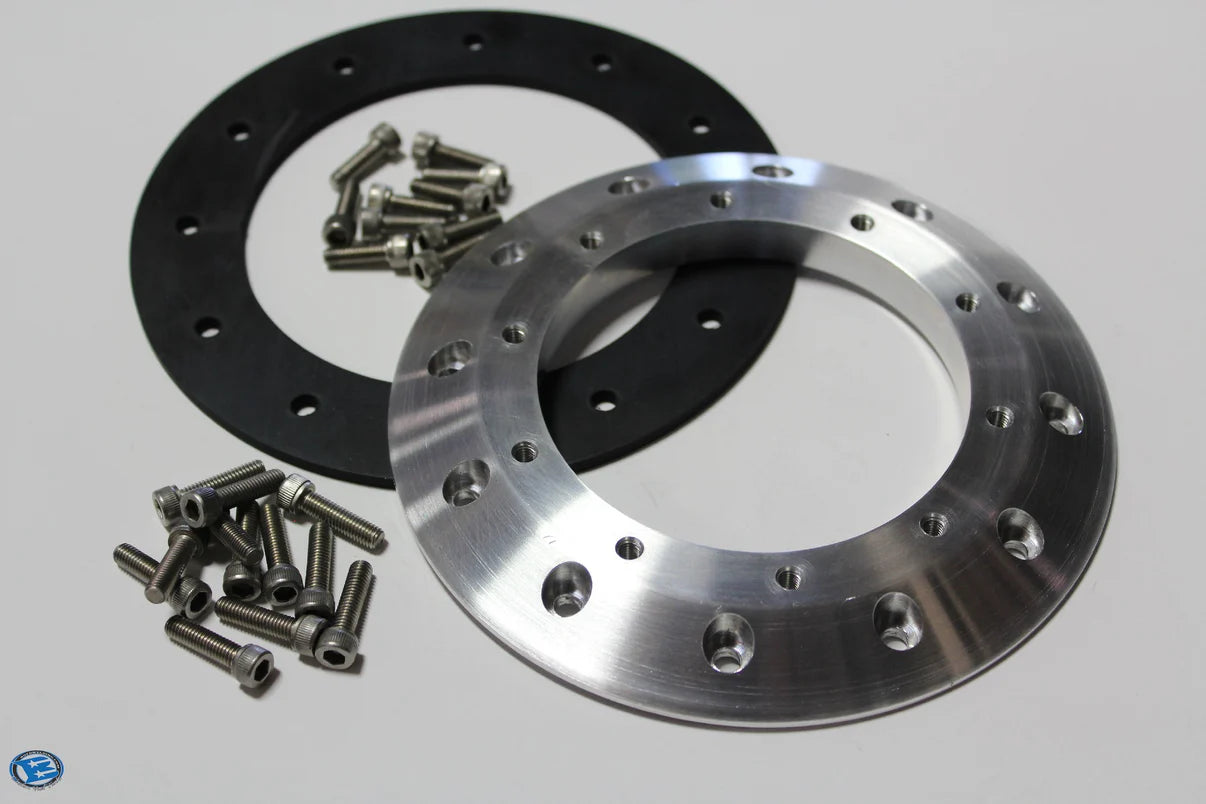

Adapter Plate Kit Includes:
1) CNC Machined Adapter Plate
1) BW EFI FKM Viton Gasket
12) 10-32 1" Stainless Screws (BW Pattern)
10) 10-32 3/4" Stainless Screws ( Aeromotive Pattern)

You will use the pump gasket and nylon washers that was supplied with the Aeromotive pump you purchased.
do not try to use the screws supplied with Aeromotive pumps.
