Drop Pockets and Upper Bag Brackets

Upgrade your C10’s air ride setup with our heavy-duty upper brackets, and weld-in lower bag cups, designed specifically for the 1963–1987 C10 trucks. These cups are engineered to properly locate up to a 7-inch air bag, giving you the strength and reliability your suspension demands. Each cup features a 3-inch deep pocket to help center the bag and improve stability through full suspension travel. Integrated drain holes prevent moisture buildup, reducing corrosion and extending the life of your components.

Features

• 3/16 Plate Construction
• 3 Inch Deep Lower Cup
• Drain Holes
• 8 5/8" Outside Diameter Tube
• 3/16" Thick

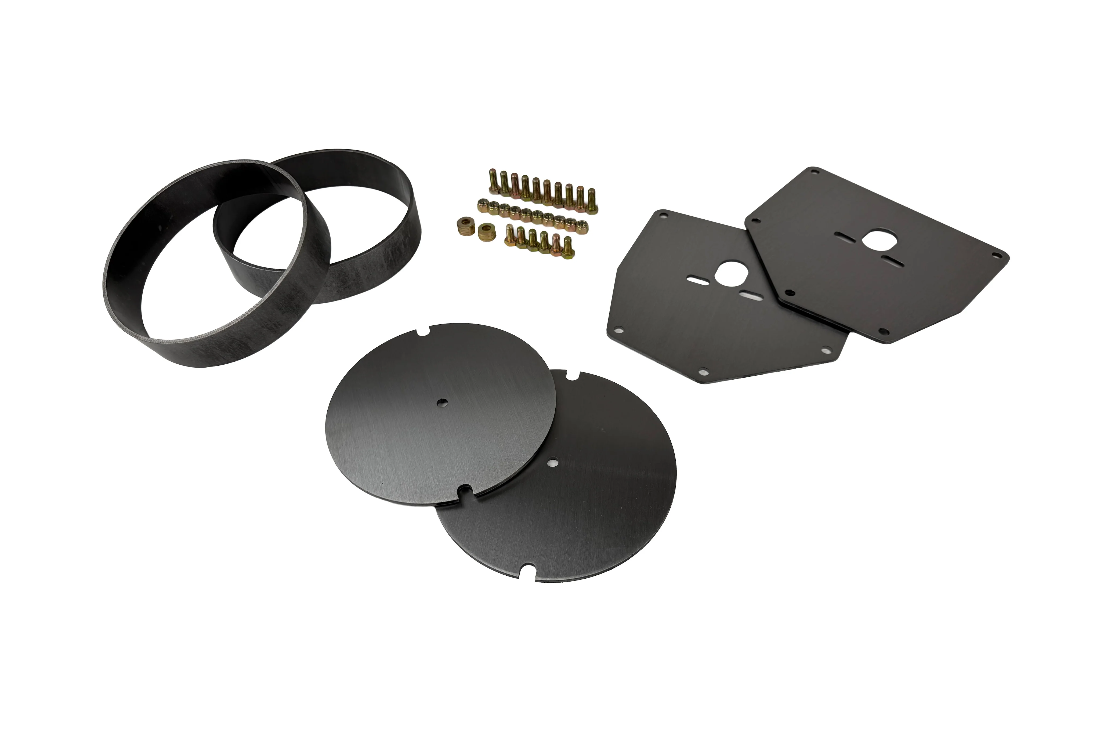

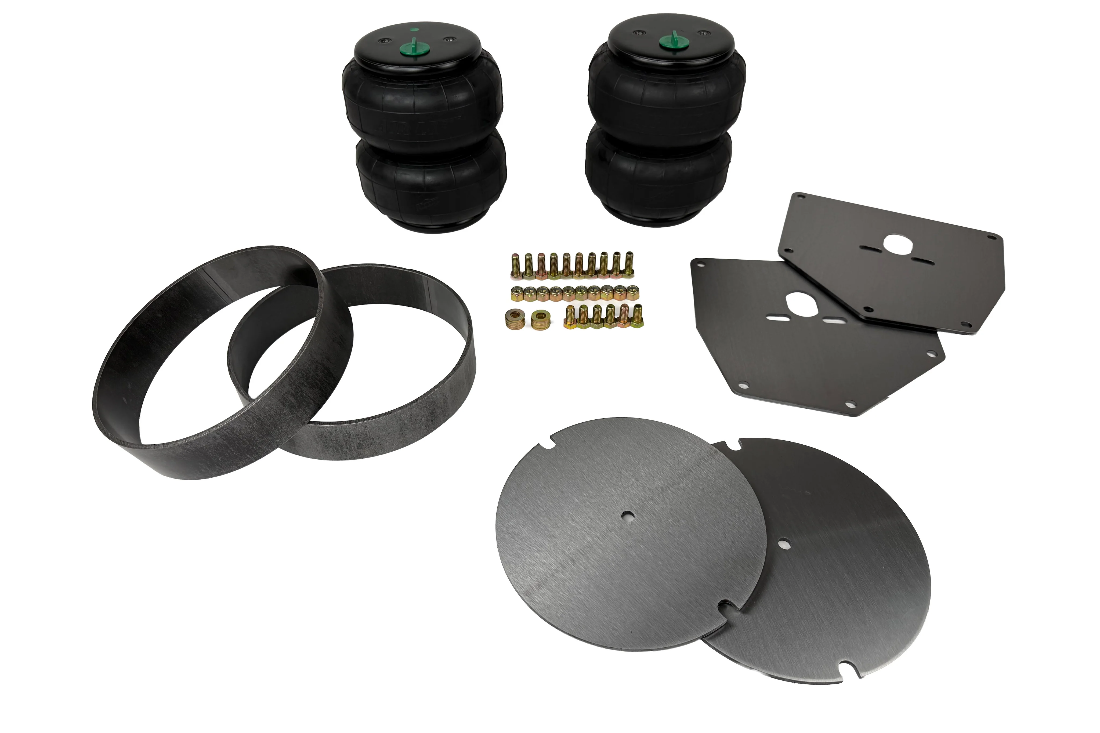

Includes

• Pair of Upper and Lower Brackets
• 2600 Pound Air Bags (optional)
• Grade 8 Hardware

Application

• Chevy/GMC C10, C20, C30 Trucks From 63-87
